- Place of Origin: China
- Brand Name: BLUE ELEPHANT
- Model Number: ELE 3050
- Weight: 7500.000 kg

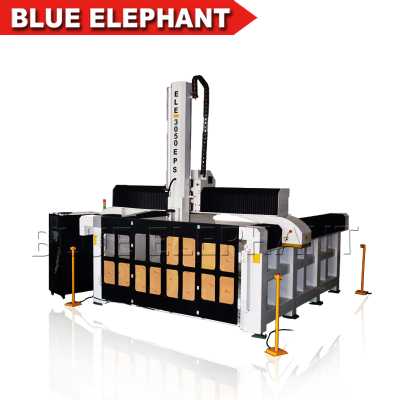

laser engraving machine wood cnc router big working table 3050 for furniture, woodworking, metal
Product Description
Advantage:
1.Self-lubricating, life-long maintenance-free Taiwan guide rail.
2.Italian high-speed spindle, with top speed of 24000rpm, guaranteering maximum processing efficiency and productivity.
3.Whole working table cast by resin sand. The annealing and other heat treatment methods ensure that the whole structure is tested to the limit for sturdiness and reliability.
4.Taiwan controller reads the codes in an efficient manner. Online simulation and monitoring function are available. Processing efficiency and safety are guaranteed.
Features:
1.Effective working area :2860x3500x1450mm
2, Italy HSD brand air cooling spindle: 4.5kw
3, 4th axis can move ±100°
4.Taiwan DELTA inverter: 5.5kw
5, Japan YASKAWA servo driver 1.5KW
6, Taiwan SYNTEC control system 4 axis 21MA model
7, Helical rack gear for X, Y axis, Taiwan TBI ball screw for Z travel
Double Taiwan HIWIN #35 Linear guide for Y axis one side,total 4pcs #35 linear guide for Y axis.
X,Z axis Taiwan HIWIN #45 linear guide .
8, Taiwan TBI ball screw with high precision
9.Dust hood for axis,dust collect hood and pipe for dust collector
10.2000mm floor with aluminum &PVC ,1300mm floor steel plate under angle
11.Rotary device:diameter 300mm, length 2000mm
12.New type dust collection with two bags
13.Heavy duty gantry and structure
14.Japan Shimpo reducer
Parameters:
Number | Description | Parameter |
1 | X,Y,Z Working Area | 2860x3500x1450 mm*±100° |
2 | Effective working area | 2860x3500x1450 mm |
3 | X,Y,Z Traveling Positioning Accuracy | ±0.01/300mm |
4 | X,Y,Z Repositioning Accuracy: | ±0.01mm |
5 | Table Surface | T-slot Table |
6 | Frame | Big Steel Tube Structure |
7 | Y Structure | Helical rack gear , 4pcs HIWIN #35 Linear guide |
8 | X,Z Structure | HIWIN #45 Linear guide |
9 | Max. Power Consumption | (Without Spindle) 5Kw |
10 | Max. Rapid Travel Rate | 40000mm/min |
11 | Max. Working Speed | 30000mm/min |
12 | Spindle Power | HSD spindle 4.5kw |
13 | Spindle Speed | 0-18000RPM |
14 | Drive Motors | Japan 1.5KW YASKAWA servo |
15 | Working Voltage | AC380V/50/60Hz,3PH (Option: 220V)) |
16 | Command Language | G Code |
17 | Operating System | SYNTEC Control System 21MA |
18 | Rotary device | Diameter300mm, length 2000mm |
18 | Computer Interface | USB |
19 | Flash Memory | 512M |
20 | Collet | ER32 (20mm) |
21 | X,Y Resolution | <0.01mm |
22 | Software Compatibility | UG , Power mill |
23 | Running Environment Temperature | 0 - 45 Centigrade |
24 | Relative Humidity | 30% - 75% |
25 | New type dust collection | 1.5KW with two bags (equal the old type 4Kw ) |
Application:
Ideal for automobile mold industry, suitable for EPS foam, casting wood mold, automobile interior decoration, engineering plastic and other non-metal materials .
Our Services
1, Within 7 days since your local customs clearance: if the cnc router’s any parts has any problems, we will change it free.
2, Exceed 7 days since your local customs clearance but within warranty period: if the cnc router parts have any problems, we can change the old machine parts to new ones free, but you should pay all the shipping cost.
3, Exceed warranty period: if the cnc router parts have any problems, we can offer new machine parts with cost price and you also should pay all the shipping cost.
4, We offer 24 hours technical support by call, and email.
5, Our technician can give you remote guide online(Skype or MSN) if you have any question.
6, We can record videos of operating the laser machine.
7, Free training course in our factory.
8.Machine will be adjusted before it is delivered , operation disk/CD was included.
Contact: Jack Zhang
Email: manager@elephant-cnc.com
Mobile/whatsapp: 0086-15064026772
Web: www.elephant-cnc.com
blueelephant.en.alibaba.com
blueelephant-cnc.en.made-in-china.com
