- Place of Origin: China
- Brand Name: BLUE ELEPHANT
- Model Number: ELE 1935
- Weight: 4000.000 kg

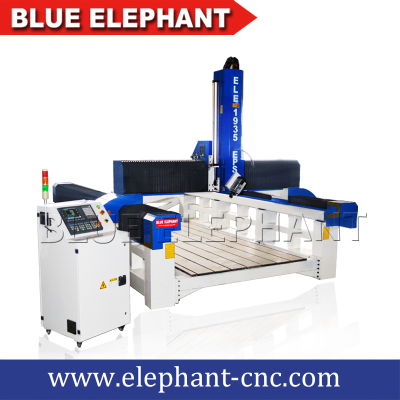

eps foam cnc router hobby cnc router cnc spindle motor 6kw italy spindle
Product Description
Advantage:
1.Self-lubricating, life-long maintenance-free Taiwan guide rail.
2.Italian high-speed spindle, with top speed of 18000rpm, guaranteering maximum processing efficiency and productivity.
3.Whole working table cast by resin sand. The annealing and other heat treatment methods ensure that the whole structure is tested to the limit for sturdiness and reliability.
4.Taiwan controller reads the codes in an efficient manner. Online simulation and monitoring function are available. Processing efficiency and safety are guaranteed.
Features:
1.Effective working area :1900x3500x800mm
2, Italy HSD brand air cooling spindle: 4.5kw
3, 4th axis can move ±100°
4.Taiwan DELTA inverter: 5.5kw
5, Japan YASKAWA servo driver 850KW
6, Taiwan SYNTEC control system 4 axis 6MB model
7, Helical rack gear for X, Y axis, Taiwan TBI ball screw for Z travel
8, Taiwan TBI ball screw with high precision
9.Divided structure bed structure ,Fixing with screws
10.Working table:T-slot working table.
11.Japan Shimpo reducer
Parameters:
Number | Description | Parameter |
1 | X,Y,Z Working Area | 1900x3500x800 mm*±100° |
2 | Effective working area | 2860x3500x1450 mm |
3 | X,Y,Z Traveling Positioning Accuracy | ±0.01/300mm |
4 | X,Y,Z Repositioning Accuracy: | ±0.01mm |
5 | Table Surface | T-slot Table |
6 | Frame | Divided structure bed structure ,Fixing with screws |
7 | X,Y Structure | Helical rack gear , 4pcs HIWIN #35 Linear guide |
8 | Z Structure | TBI ball screw,4 pcs slider |
9 | Max. Power Consumption | (Without Spindle) 6Kw |
10 | Max. Rapid Travel Rate | 40000mm/min |
11 | Max. Working Speed | 30000mm/min |
12 | Spindle Power | HSD spindle 4.5kw |
13 | Spindle Speed | 0-18000RPM |
14 | Drive Motors | Japan 850W YASKAWA servo |
15 | Working Voltage | AC380V/50/60Hz,3PH (Option: 220V)) |
16 | Command Language | G Code |
17 | Operating System | SYNTEC Control System 6MB |
18 | Computer Interface | USB |
19 | Flash Memory | 512M |
20 | Collet | ER30 |
21 | X,Y Resolution | <0.01mm |
22 | Software Compatibility | UG , Power mill |
23 | Running Environment Temperature | 0 - 45 Centigrade |
24 | Relative Humidity | 30% - 75% |
Application:
Ideal for automobile mold industry, suitable for EPS foam, casting wood mold, automobile interior decoration, engineering plastic and other non-metal materials .
Contact: Jack Zhang
Email: manager@elephant-cnc.com
Mobile/whatsapp: 0086-15064026772
Web: www.elephant-cnc.com
blueelephant.en.alibaba.com
blueelephant-cnc.en.made-in-china.com
