- Place of Origin: China
- Brand Name: BLUE ELEPHANT
- Model Number: ELE 1530
- Weight: 1600.000 kg

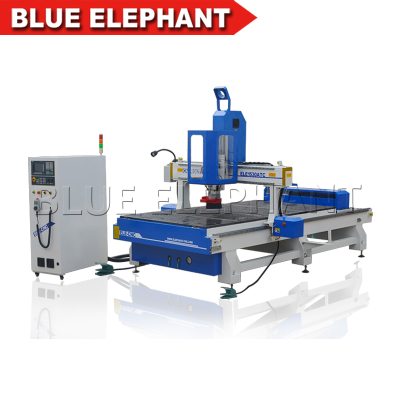

Wood CNC engraving 1530 ATC CNC price 9kw Italian spindle
Product Description
Advantage:
1.Featuring Italian high frequency air-cooling spindle and world-class servo motor and driving system.
2. Schneider leading international electrical accessories
3.Vacuum table with grids and T-slots,maximize the vacuum hold-down power and also enables you to clamp the worklpiece in place
4.HSD Spindle metal cover ,and the tool magazine hood for dust-proof.
5. The vacuum valve is controlled by foot pedals.
6.The Pop-up Cylinder can be shut down by automatic when the machinery get starting.
7.New HSD series spindle( HSK-F63 ) is different with ISO 30. it is powerful.
Features:
1. Air cooling spindle----9 KW Italy HSD atc air cooling spindle.Well-known brands ,long working life,low noise,strong cutting ability to ensure the long time working.
2.Germany Simens control system----Easy operation. Support offline operation,more table.
3.Germany Simens servo motor----High-performance drive motor to ensure that the machines high speed and accuracy.
4. HIWIN linear rail 25# from Taiwan ----Smooth and precise transmission,low noise,and lifetime is 10 times longer than common rail way.
5. Vacuum & T-slot combined worktable----Can both absorb big materials by vacuum power and fix small materials by clamps. There is MDF boardon it for protection.
6. Helical rack transmission----Ensure fast speed,big loading capacity,strong power,long lifetime, and it ensures the machine more stable.
7. Carrousel Tool Magazine(ATC 1530 cnc router)---- With 8 tool holders and 8 tool forks,can save working time and will work so convenient. Can also choose 6 or 10 tool holders and forks. it also can be added the Aggregates.
Parameters:
Number | Description | Parameter |
1 | X,Y,Z Working Area | 1500x3000x400mm |
2 | X,Y,Z Traveling Positioning Accuracy | ±0.03/300mm |
3 | X,Y,Z Repositioning Accuracy | ±0.03mm |
4 | Table Surface | Vacuum and T-slot working table |
5 | Frame Structure | Heavy-duty Thicken Big Steel Tube Structure |
6 | X, Y Structure | Helical Rack and Pinion Drive, Hiwin Rail Linear Bearings |
7 | Z Structure | Hiwin Rail Linear Bearings and Ball Screw |
8 | Max. Power Consumption | 12Kw |
9 | Max. Rapid Travel Rate | 33000mm/min |
10 | Max. Working Speed | 25000mm/min |
11 | Spindle Power | New Italy HSD series spindle( HSK-F63 ) |
12 | Spindle Speed | 24000RPM |
13 | Drive Motors | Germany Siemens servo motor |
14 | Inverter | 11kw Taiwan Delta Inverter |
15 | Command Language | G Code |
16 | Operating System | Germany Siemens |
17 | Computer Interface | USB |
18 | Mist cooling system | automatic oil cooling sprayer system |
19 | Collet | ER32 |
20 | X,Y Resolution | <0.01mm |
21 | Software Compatibility | Type3/UcancameV9 Software, (Option: Artcam Software) |
22 | Running Environment Temperature | 0 - 45 Centigrade |
23 | Relative Humidity | 30% - 75% |
Our Services
1, Within 7 days since your local customs clearance: if the cnc router’s any parts has any problems, we will change it free.
2, Exceed 7 days since your local customs clearance but within warranty period: if the cnc router parts have any problems, we can change the old machine parts to new ones free, but you should pay all the shipping cost.
3, Exceed warranty period: if the cnc router parts have any problems, we can offer new machine parts with cost price and you also should pay all the shipping cost.
4, We offer 24 hours technical support by call, and email.
5, Our technician can give you remote guide online(Skype or MSN) if you have any question.
6, We can record videos of operating the laser machine.
7, Free training course in our factory.
8.Machine will be adjusted before it is delivered , operation disk/CD was included.
