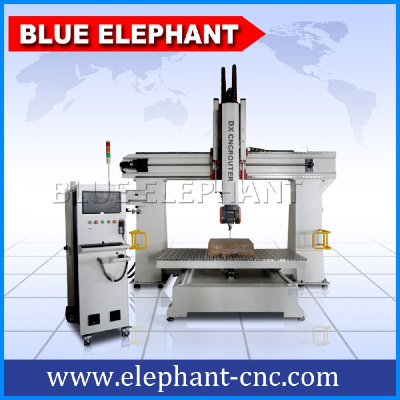

High quality 5 axis cnc router 1224 , 5 axis cnc wood carving machine for wood moulding
Technical Parameters of 5 axis cnc router:
Item | Description |
Model | ELE-1224 5 axis cnc router |
Movement type | Movable table |
X ,Y,Z working area (mm) | 2400*1200*900mm |
C travelling | ±213° |
A travelling | ±120° |
Beam spacing(mm) | 4260 |
Beam Height(mm) | 2150 |
Vacuum pump | Germany Becker pump |
Supplier for Double pendulum head | 10.0 KW Italian HSD |
Range of speeds | 22000 RPM/min |
Servo Motor brand | YASKAVA |
Table size (mm) | 1200*2400 |
Product fixed form | Vacuum table |
Tool magazine | 8 positions Carousel Tool Storage |
Control system | OSAI |
Machine size | 3600*4000*3500mm |
Total weight | 12T |
Total Power(kw) | 24KW |
Voltage | AC380V/60HZ |
Maximum lifting weights | 20T |
File exchange | G code |
X,Y axis Maximum speed | 45m/min |
Z,C axis Maximum speed | 20m/min |
A axis Maximum speed | 20m/min |
Guarantee time | One year of guatantee in case of non-human damage |
Option items: | Change the 3.0 KW single bag dust collector to 5.5 KW double bag,Original Alphacam software |
Features of 5 axis cnc router:
European OSAI control system, powerful and easy to operate, high precision.
Z axis travel can increase to 1.5 meters, large format, suitable for large-scale three dimensional surface protection.
Intelligent processing of cross-border protection.
Diversified control can promise the processing speed, idling speed, cutting speed , greatly improving the quality of processed products and processing efficiency.
All components adopt international famous brands.
Applications of 5 axis cnc router:
Mold industry: casting, cars, ships, yachts, aerospace industry, wind power generation, rail transport, large arts and crafts.
Applicable materials: wood, polystyrene foam (EPS),wood and non-material.
Our Factory
Jinan Blue Elephant CNC Equipment Co., Ltd is located in Jinan City , Shandong Province .
We have always been developing to the research and manufacturer of CNC router machine and plasma cutting machine .
We have our R & D department , Quality control department , and after sale & service department .
Our products are widely used in Woodworking , Advertising , Model , Electric , CAD / CAM Industry model , Clothing , Package Printing , Marking , Laser sealing and so on .
We had got CE and SGS certification , always offer best quality machine .
Welcome to visit our factory!
FAQ
1. How should i pay for my order ? what is the procession of this purchase ?
we accept TT by bank. you can do 30% prepayment at first, then we will start to make production.
when the machine is ready , we will take pictures to you, and then you can do the ballance.
after we got your payment. i will send the machine to you.
2. How about your service after sales ? can your engineer speak fluent english ?
we offer the service from you got the machine, including how to install the machine,
how to use machine. how to let machine work. and so on. usually we will teach you how to do by email or by skype our engineer has many years of experience for cnc machine service . he can speak very good english ,
so he can slove the problem in short time.
3.Are you a factory or trading company?
We are the manufacturer . as only the machine made by ourself ,quality can be trusted, and most important thing is we can do better service after sales. we know how to fix the problem in each parts easliy. so welcome to visit our factory
4. How long is the delivery time?
For standard machines, it would be 7-10 days; For non-standard machines and customized machines according to client s specific requirements, it would be 15 to 30 days.
5. How about the documents after shipment?
Aftershipment,will send all original documents to you by DHL, including Packing List, Commercial Invoice, B/L, and other certificates as required by client.
Contact: Jack Zhang
Email: manager@elephant-cnc.com
Mobile/whatsapp: 0086-15064026772
Web: www.elephant-cnc.com
blueelephant.en.alibaba.com
blueelephant-cnc.en.made-in-china.com
