- Place of Origin: China
- Brand Name: BLUE ELEPHANT
- Model Number: ELE 1325

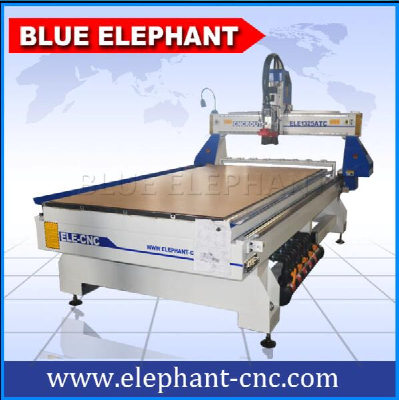

1325 atc wood cnc router machine made in China
1.Control system:NK 260 for ATC,high precision , Independent panel ,easy to operate.
2.Vacuum pump:water circulation vacuum pump.
3.Spindle:9KW China Changsheng ATC air cooling spindle.
4.Drive Motors:750w Japan's Panasonic.
5.Inverter :11kw Fuling Inverter.
6.HIWIN/PMI linear rail from Taiwan for 3 axes, more stable and precise,low noise,and its lifetime is 10 times longer than common rail way.
7.Helical rack gear transmission, which can ensure faster speed,higher efficiency,stronger power,longer lifetime,and it makes the machine more stable.
Description | Parameter |
X,Y,Z Working Area | 1300x2500x200mm |
X,Y,Z Traveling Positioning Accuracy | ±0.03/300mm |
Table Surface | Vacuum&T-slot Table |
Frame | Welded Structure,heavy duty T-structure |
X, Y Structure | Helical Rack gear, Taiwan Hiwin/PMI Rail Linear Bearings |
Z Structure | Taiwan TBI Ball Screw Taiwan Hiwin/PMI Rail Linear Bearings |
Max. Power Consumption | 12.0KW |
Max. Rapid Travel Rate | 45000mm/min |
Max. Working Speed | 30000mm/min |
Spindle Power | 9KW Changsheng ATC water cooling spindle(Top brand in China) |
Spindle Speed | 0-24000RPM |
Drive Motors | 750w Japan's Panasonic |
Vacuum pump | water circulation vacuum pump |
Control System | NK260 |
Application
1.WoodFurniture Industry: Wave Plate, fine pattern, antique furniture, wooden door, screen, craft sash, composite gates, cupboard doors, interior doors, sofa legs, headboards and so on.
2.Advertising Industry: advertising identification, sigh making, Acrylic engraving and cutting, crystal word making,blaster molding, and other advertising materials derivatives making.
3.Die Industry:A sculpture of copper, aluminum, iron and other metal molds, as well as artificial marble, sand,
plastic sheeting, PVC pipe, wooden planks and other non-metallic mold.
4.Relief Sculpture and 3D Engraving & Cylindrical object.
Contact: Jack Zhang
Email: manager@elephant-cnc.com
Mobile/whatsapp: 0086-15064026772
Web: www.elephant-cnc.com
blueelephant.en.alibaba.com
blueelephant-cnc.en.made-in-china.com
