- Place of Origin: China

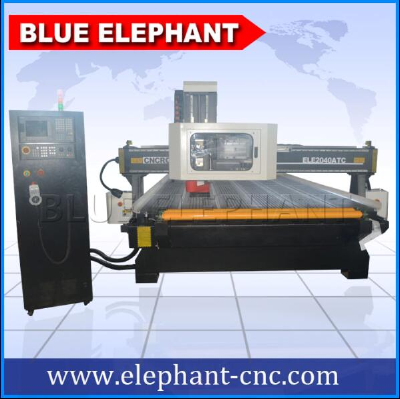

- Brand Name: BLUE ELEPHANT
- Model Number: 2040
Number
Description
Parameter
1
X,Y,Z Working Area
2000x4000x200mm
3
Inverter
11kw Taiwan Delta Inverter
4
X,Y,Z Repositioning Accuracy
±0.03mm
5
Table Surface
Vacuum &T-slot Table
6
Frame
Welded steel structure
7
X, Y Structure
Taiwan HIWIN #25mm Linear Guide
8
Z Structure
Taiwan TBI Ball screw and HIWIN #25mm Linear Guid
9
Max. Power Consumption
2.0KW
10
Max. Rapid Travel Rate
45000mm/min
11
Max. Working Speed
30000mm/min
12
Spindle Power
9KW HSD air cooling spindle(optional)
13
Spindle Speed
0-24000RPM
14
Drive Motors
SIEMENS
15
Vacuum pump
7.5kw Tongyou vacuum pump
16
Command Language
G Code
17
Operating System
SIEMENS Control System
18
Computer Interface
USB
19
Flash Memory
128M(U Disk)
20
Collet
ER32
21
X,Y Resolution
<0.01mm
22
Software Compatibility
Type3 Software, (Option: Artcam Software)
23
Running Environment Temperature
0 - 45 Centigrade
24
Relative Humidity
30% - 75%
- Place of Origin: China
- Brand Name: BLUE ELEPHANT
- Model Number: 2040
Number | Description | Parameter |
1 | X,Y,Z Working Area | 2000x4000x200mm |
3 | Inverter | 11kw Taiwan Delta Inverter |
4 | X,Y,Z Repositioning Accuracy | ±0.03mm |
5 | Table Surface | Vacuum &T-slot Table |
6 | Frame | Welded steel structure |
7 | X, Y Structure | Taiwan HIWIN #25mm Linear Guide |
8 | Z Structure | Taiwan TBI Ball screw and HIWIN #25mm Linear Guid |
9 | Max. Power Consumption | 2.0KW |
10 | Max. Rapid Travel Rate | 45000mm/min |
11 | Max. Working Speed | 30000mm/min |
12 | Spindle Power | 9KW HSD air cooling spindle(optional) |
13 | Spindle Speed | 0-24000RPM |
14 | Drive Motors | SIEMENS |
15 | Vacuum pump | 7.5kw Tongyou vacuum pump |
16 | Command Language | G Code |
17 | Operating System | SIEMENS Control System |
18 | Computer Interface | USB |
19 | Flash Memory | 128M(U Disk) |
20 | Collet | ER32 |
21 | X,Y Resolution | <0.01mm |
22 | Software Compatibility | Type3 Software, (Option: Artcam Software) |
23 | Running Environment Temperature | 0 - 45 Centigrade |
24 | Relative Humidity | 30% - 75% |
