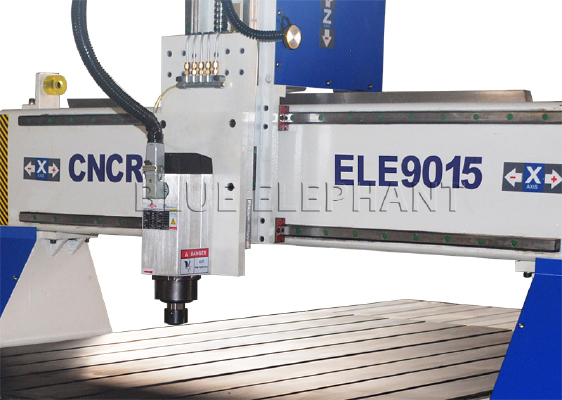

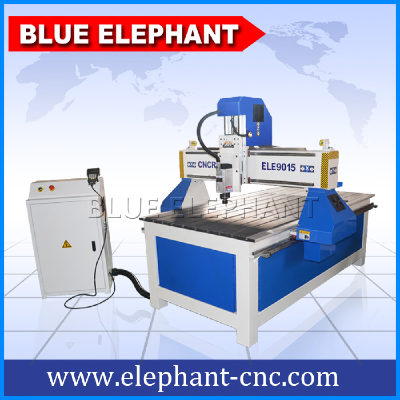

ELE 9015 Aluminum Cutting Machine , advertising 4 axis wooden door cnc router with CE certificates

ELE 9015 Aluminum Cutting Machine , advertising 4 axis wooden door cnc router with CE certificates

  • Min.Order Quantity: 1 Set
  • Supply Ability: 200 Sets per Month
  • Port: Qingdao
  • Payment Terms: L/C,D/A,D/P,T/T,Western Union
Get Latest Price:
  • *Quantity: Set/Sets
| Factory
Experience:2013-04-03
Buyer Protection

- Guaranteed Secure Payments on Every Order

- Refund if your item is not delivered or as described

- Buyer Protection after order confirmation

Latest Browsing
Product Details
  • Place of Origin:  China
  • Brand Name:  BLUE ELEPHANT
  • Model Number:  ELE 9015

ELE 9015 Aluminum Cutting Machine , advertising 4 axis wooden door cnc router with CE certificates

Features of 9015 cnc router:

  • 900*1500*200mm working area(customized)

  • DSP A18 4 axis control system with USB port

  • 2.2kw air cooling spindle,With imported bearing, ER20 Collect

  • 2.2kw fuling inverter

  • 450A stepper motor and Leadshine 860H driver

  • #20 Taiwan HIWIN square linear guide rails

  • Taiwan TBI ball screw

  • T-slot work table with PVC protection

  • water mist cooling sprary,cooling tools when the machine working

  • software:artcam/Type 3

  • working voltage:220v 3ph 50hz(110v for optional)

  • Tool sensor

  • Rotary device:1200 length,80mm diameter

Specification

Parameters of cnc machine router:



Description

Parameter

X,Y,Z Working Area

900mmx1500mmx200mm

Control System

DSP A18 4 axis control system

Table Surface

PVC & T-slot Table

X, Y,Z Structure

Z axis TBI Ball Screw ,#20 HINWIN linear guide

X,Y axis #20 HINWIN linear guide ,Helical rack gear

Spindle Power

2.2 KW Changsheng air Cooling Spindle

Spindle Speed

0-18000RPM

Drive Motors

Stepper

Inverter

2.2kw Fuling Inverter

Working Voltage

AC220V/3PH/50HZ(110V for optional)

Operating System

ARTCAM/Type3

X,Y Resolution

<0.01mm

Running Environment  Temperature

0 - 45 Centigrade

Relative Humidity

30% - 75%

PS:All the working area and specifications can be customized according to your requests.

Application of 3 axis cnc wood router:



1) It is good at engraving on brass, aluminum, plastic, acrylic, wood, MDF and other similar materials , with fast speed and high accuracy, and it can meet the demand of all the needs of engraving.

2)Especially for Advertising industry:Advertising identification, sigh making, Acrylic engraving and cutting,  Blaster molding, Crafts relief processing, PVC words,Light words,Plastic words,Artwork,Aluminum,PCB,Various types of landmark model.

Our Services

1, Within 7 days since your local customs clearance: if the cnc router’s any parts has any problems, we will change it free.
2, Exceed 7 days since your local customs clearance but within warranty period: if the cnc router parts have any problems, we can change the old machine parts to new ones free, but you should pay all the shipping cost.

3, Exceed warranty period: if the cnc router parts have any problems, we can offer new machine parts with cost price and you also should pay all the shipping cost.
4, We offer 24 hours technical support by call, and email.
5, Our technician can give you remote guide online(Skype or MSN) if you have any question.
6, We can record videos of operating the laser machine.
7, Free training course in our factory.
8.Machine will be adjusted before it is delivered , operation disk/CD was included.


Contact:  Jack Zhang

Email: manager@elephant-cnc.com

Mobile/whatsapp: 0086-15064026772

Web: www.elephant-cnc.com

                blueelephant.en.alibaba.com

                               blueelephant-cnc.en.made-in-china.com


  • Place of Origin:  China
  • Brand Name:  BLUE ELEPHANT
  • Model Number:  ELE 9015

Specification

Parameters of cnc machine router:



Description

Parameter

X,Y,Z Working Area

900mmx1500mmx200mm

Control System

DSP A18 4 axis control system

Table Surface

PVC & T-slot Table

X, Y,Z Structure

Z axis TBI Ball Screw ,#20 HINWIN linear guide

X,Y axis #20 HINWIN linear guide ,Helical rack gear

Spindle Power

2.2 KW Changsheng air Cooling Spindle

Spindle Speed

0-18000RPM

Drive Motors

Stepper

Inverter

2.2kw Fuling Inverter

Working Voltage

AC220V/3PH/50HZ(110V for optional)

Operating System

ARTCAM/Type3

X,Y Resolution

<0.01mm

Running Environment  Temperature

0 - 45 Centigrade

Relative Humidity

30% - 75%

PS:All the working area and specifications can be customized according to your requests.
