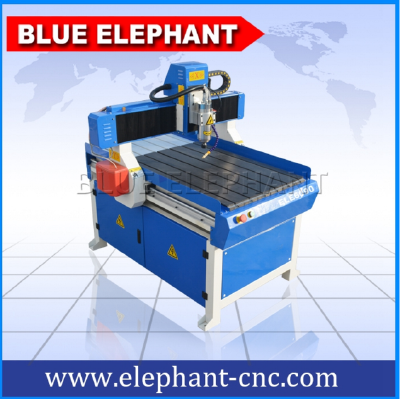

Product Details
- Place of Origin: China
- Brand Name: BLUE ELEPHANT
- Model Number: 6090
Descriptions Parameters Modle ELE6090 Working area 600*900*160mm Voltage 220V, 3phase, 50Hz Control system Mach3 control system with USB port Spindle 2.2kw water cooling spindle Spindle speed 0-24000RPM Inverter 2.2kw FULING inverter Motor 450A stepper motor Driver Leadshine M542 driver Linear rail Round orbit Transmission X,Y,Z axis Taiwan TBI ball screw Table surface T-slot working table Table structure Cast iron structure Optional water mist cooling sprayer PS:All the working area and specifications can be customized according to your requests.
- Place of Origin: China
- Brand Name: BLUE ELEPHANT
- Model Number: 6090
| Descriptions | Parameters |
| Modle | ELE6090 |
| Working area | 600*900*160mm |
| Voltage | 220V, 3phase, 50Hz |
| Control system | Mach3 control system with USB port |
| Spindle | 2.2kw water cooling spindle |
| Spindle speed | 0-24000RPM |
| Inverter | 2.2kw FULING inverter |
| Motor | 450A stepper motor |
| Driver | Leadshine M542 driver |
| Linear rail | Round orbit |
| Transmission | X,Y,Z axis Taiwan TBI ball screw |
| Table surface | T-slot working table |
| Table structure | Cast iron structure |
| Optional | water mist cooling sprayer |
PS:All the working area and specifications can be customized according to your requests.
