- Place of Origin: China
- Brand Name: BLUE ELEPHANT
- Model Number: ELE 2055

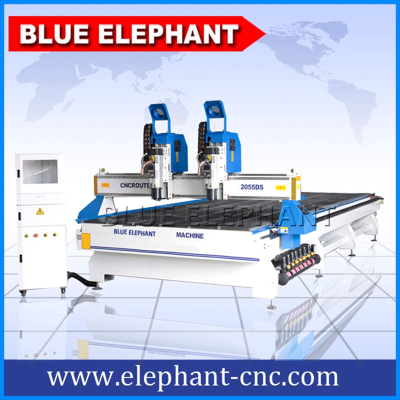

ELE 2055 cnc router engraving machine , double heads cnc machines for woodworking
Product Description
Features
• 2000*5500mm*200mm effective working area
• Double separate heads with 2 pieces of 9 KW China Changsheng or HQD ATC spindle,ISO30
• Vacuum & T-slot working table
• 11kw Taiwan DELTA inverter
• Z axis with Taiwan TBI Ball screw transmission
• X,Y axis with high precision helical rack gear transmission
• X,Y,Z axis with Taiwan #25 HIWIN Linear Guide
• Ncstuido 53C model ,Original type
• 1kw Japan YASKAWA servo driver and motor, total 6 sets ; double sets with servo motor brake for Z axis
• Double motors for Y axis
• Tool calibration sensor
• Auto Oil lubrication system
• Switch: Japanese OMRON Switch
• Cable: Highly flexible towline; fire-resistant double-sheathed cable.
• Artcam /Type 3 software
• Voltage: 380V, 3 phase, 50/60HZ (220v,1phase or 3phase for your option)
• 2 sets of 3kw double packet dust collector
Parameters
Number | Description | Parameter |
1 | X,Y,Z Working Area | 2000x5500x200mm |
3 | X,Y,Z Traveling Positioning Accuracy | ±0.03/300mm |
4 | X,Y,Z Repositioning Accuracy | ±0.03mm |
5 | Table Surface | T-slot&Vacuum working Table |
6 | Frame structure | Cast iron |
7 | X, Y Structure | 25#Taiwan HIWIN Linear guide and helical rack |
8 | Z Structure | Ball screw and#25 Taiwan HIWIN Linear guide |
9 | Stepper Motor and driver | 1KW Japan YASKAWA |
10 | Max. Rapid Travel Rate | 45000mm/min |
11 | Max. Working Speed | 30000mm/min |
12 | Optional parts | Dust collector ,vacuum pump |
13 | Spindle Speed | 0-18000RPM |
14 | Spindle power | 9kw Changsheng or HQD air cooling spindle |
15 | Inverter | 11kw E-type Taiwan Delta Inverter |
16 | Command Language | G Code |
17 | Control System | NCstudio 53C |
18 | Computer Interface | USB |
19 | Flash Memory | 512M(U Disk) |
20 | Collet | ER32 |
21 | X,Y Resolution | <0.01mm |
22 | Software Compatibility | Type3 Software, (Option: Artcam Software) |
23 | Running Environment Temperature | 0 - 45 Centigrade |
24 | Relative Humidity | 30% - 75% |
PS:All the working area and specifications can be customized according to your requests.
Applications:
Furniture:ideally suitable for mass processing cabinet door,wooden door,solid wood furniture,panel wood furniture,windows,tables and chairs,etc.
Well suited for processing panel.insulating materials,plastic,expoxy resin.carbon mixed compound,etc.
Packaging and shipping:
1.Outside Package: Standard export wooden case.
2.Inner package: strech film.
For shipping, you can choose the sea shipping, air shipping or the transmission of expressage: DHL/TNT/Fedex.
For terms of payment, you can choose the EXW/FOB/CIF/DDP/DDU. It depends on what you would like better.
Our Services
Guarantee and After-sale Service:
12 months for the whole machine .
1, Technical support by phone , email or MSN/Skype around the clock
2, Friendly English version manual and operation video CD disk
3, Engineer available to service machinery overseas
FAQ:
Q1: I need a cnc router, can you give me some suggestions?
Sure, but to suggest you the most suitable machine, I need to know further informations such as effective processing area , materials etc.
Q2: which kind of materials can be processed on this machine ?
Wood, mdf, stone, acrylic, glass, plastic, foam, aluminium, copper, and almost all kinds of non-steel materials.
Q3: can I process round /cylinder workpiece such as chair legs ?
Of course, Only need to add a set of rotary device, you can engrave all kinds of cylinder materials.
Q4: Are you a factory or trading company?
We are the manufacturer and we have 10 years factory experience .As only the machine made by ourself ,quality can be trusted, and most important thing is we can do better service after sales. we know how to fix the problem in each parts easliy. so welcome to visit to our factory
Q5: How long is the delivery time?
For standard machines, it would be 7-10 days; For non-standard machines and customized machines according to client s specific requirements, it would be 15 to 30 days.
Q6: How should I pay for my order ? what is the procession of this purchase ?
You can do 30% prepayment at first, then we will start to make production. When the machine is ready , we will take pictures to you, and then you can do the ballance.after we got your payment. We will send the machine to you.
Company Information:
Jinan Blue Elephant CNC Machinery Co., Ltd is located in Jinan City, Shandong Province. We have always been developed to the research and manufacturer of CNC router machine and laser cutting engraving machine.
We have our R & D department, Quality control department, and after sale & service department.
Our products are widely used in Woodworking, Advertising, Model, Electric, CAD/CAM Industry model, Clothing, Package Printing, Marking, Laser sealing and so on.
We had got CE and FDA certification always offer best quality machine.
Our Philosophy: To Be First Brand -- CNC Manufacturer & wholesaler Platform!
Just looking forward to service every customer, like you.
Contact: Jack Zhang
Email: manager@elephant-cnc.com
Mobile/whatsapp: 0086-15064026772
Web: www.elephant-cnc.com
blueelephant.en.alibaba.com
blueelephant-cnc.en.made-in-china.com
