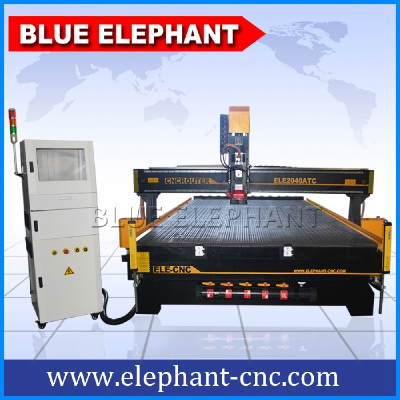

ELE 2040 dust cover cnc router , italy combination woodworking machines to make wood furniture

Product Description

Advantage:

1.2000*4000*300mm working area,High Z axis travel,easy to process material.

2.9kw Italy HSD air cooling spindle,top brand in the world,strong power,high working speed.

3.Vacuum working table,9 zones,help to fix the material, increase the utilization rate

4.New type big welded steel tube machine body

5.Positioning cylinder 6 pcs to fix the material

6.Computer control cabinet with traffic light

7.Double homing sensor on the Bridge for Eding CNC

Features:

1. Effectiveworkingarea 2000*4000mm
2. 9kw Italy HSD ATC air cooling spindle,24000 rpm
3. 11kw Taiwan Delta inverter
4. Japan 850W YASKAWA servo motors and 1kw drivers
5. HIWIN#25 linear square guide way forX,Y,Z axis , TaiwanTBI ball screw for Z axis
6. 12 liner tool storage

7. Stronger support for the bridge

8. Automatic Oil Lubrication System

9. Japan Shimpo reducer

10.2 sets 7.5Kw water circulation vacuum pump

11.Voltage:400V,3phase,50HZ(Optional)

Parameters:

Application & samples :

1. WoodFurniture Industry: Wave Plate, fine pattern, antique furniture, wooden door, screen,

craft sash, composite gates, cupboard doors, interior doors, sofa legs, headboards and so on.

2.Advertising industry: advertising identification, sigh making, Acrylic engraving and cutting,

crystal word making, blaster molding, and other advertising materials derivatives making.

3.die industry: A sculpture of copper, aluminum, iron and other metal molds, as well as

artificial marble, sand, plastic sheeting, PVC pipe, wooden planks and other non-metallic mold.

4.relief sculpture and 3D engraving

FAQ

 1, What payment you accept?

1,T/T inadvance   2.western union  3 .by  ESCROW . 4 by paypal .

2,I did not imported before , how should I do ?

You only need pay to us , we will arrange all the things to you and teach you how to do.We will prepare all the documents to you,

you don't need worry , because we know what you need .

3, Do you Arrange the ship For us?

yes ,for FOB or CIF price, we will arrange shipment for you.

4,How about the documents after shipment?

We‘ ll send all original documents to you by DHL, for example :the  Packing List, Commercial Invoice, B/L,

and other certificates as required by clients.

5, How about the packing?

It's packaged by plywood case.
