- Place of Origin: China
- Brand Name: BLUE ELEPHANT
- Model Number: ELE 2030

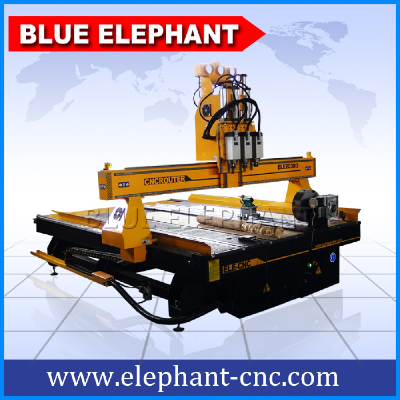

ELE 2030 rotary 4 axis wood carving machine , 3 spindles cnc cutting machine for wood stairs
Product Description
Advantages:
It can engrave the material with 3 different tools. No need to change tools.
It is very suitable for the clients who have limited budget for auto tool change (ATC) cnc router.
There is a removable rotary. So the machine can engrave both plate and cylinder.
It can be used in the furniture industry, decorate industry.
Features:
2000*3000*200mm working size
6kw HQD air cooling spindle 3 heads
7.5kw Fuling inverter
T slot &Vacuum table
Taiwan HIWIN Square Rail for X, Y, Z axis #20
stepper motor FL118 YAKO2811 driver
DSP control system
dust colleation brush, pipe and frame
Ucancam 2012 software
8mm Heavy duty Body construction
24 pieces router bits
300mm rotary device
Parameters:
Descriptions | Parameters |
Modle | ELE 2030 |
Working area | 2000*3000*200mm |
Control system | DSP A123 control system |
Spindle | 6kw HQD air cooling spindle * 3 |
Spindle speed | 0-18000RPM |
Inverter | 7.5kw Fuling Inverter |
Motor and driver | Stepper |
Voltage | 380V, 3ph, 50Hz(220v for optional) |
Linear rail | Taiwan PMI 20# linear guide |
Table structure | New type thicker and bigger heavy duty welded frame and gantry |
Table surface | Vacuum working table |
X,Y axis transmission | Helical rack and pinion drive for X,Y axis |
Z axis transmission | Taiwan TBI 2510 ball screw for z axis |
Software | Ucancam 2012 |
Applications:
Strong functions, easy operation, durable, reliable performance, high efficiency, applicable to batch process any wooden products, antique furniture, crafts gifts, relief processing.
1. WoodFurniture Industry: Wave Plate, fine pattern, antique furniture, wooden door, screen, MDF, craft sash, composite gates, cupboard doors, interior doors, sofa legs, headboards and so on.
2.Advertising industry: advertising identification, sigh making, Acrylic engraving and cutting, crystal word making, blaster molding, and other advertising materials derivatives making.
Our Services
1, Within 7 days since your local customs clearance: if the cnc router’s any parts has any problems, we will change it free.
2, Exceed 7 days since your local customs clearance but within warranty period: if the cnc router parts have any problems, we can change the old machine parts to new ones free, but you should pay all the shipping cost.
3, Exceed warranty period: if the cnc router parts have any problems, we can offer new machine parts with cost price and you also should pay all the shipping cost.
4, We offer 24 hours technical support by call, and email.
5, Our technician can give you remote guide online(Skype or MSN) if you have any question.
6, We can record videos of operating the laser machine.
7, Free training course in our factory.
8.Machine will be adjusted before it is delivered , operation disk/CD was included.
Our Factory
Jinan Blue Elephant CNC Equipment Co., Ltd is located in Jinan City , Shandong Province .
We have always been developing to the research and manufacturer of CNC router machine and plasma cutting machine .
We have our R & D department , Quality control department , and after sale & service department .
Our products are widely used in Woodworking , Advertising , Model , Electric , CAD / CAM Industry model , Clothing , Package Printing , Marking , Laser sealing and so on .
We had got CE and SGS certification , always offer best quality machine .
Welcome to visit our factory!
Contact: Jack Zhang
Email: manager@elephant-cnc.com
Mobile/whatsapp: 0086-15064026772
Web: www.elephant-cnc.com
blueelephant.en.alibaba.com
blueelephant-cnc.en.made-in-china.com
- Place of Origin: China
- Brand Name: BLUE ELEPHANT
- Model Number: ELE 2030
Parameters:
Descriptions | Parameters |
Modle | ELE 2030 |
Working area | 2000*3000*200mm |
Control system | DSP A123 control system |
Spindle | 6kw HQD air cooling spindle * 3 |
Spindle speed | 0-18000RPM |
Inverter | 7.5kw Fuling Inverter |
Motor and driver | Stepper |
Voltage | 380V, 3ph, 50Hz(220v for optional) |
Linear rail | Taiwan PMI 20# linear guide |
Table structure | New type thicker and bigger heavy duty welded frame and gantry |
Table surface | Vacuum working table |
X,Y axis transmission | Helical rack and pinion drive for X,Y axis |
Z axis transmission | Taiwan TBI 2510 ball screw for z axis |
Software | Ucancam 2012 |
