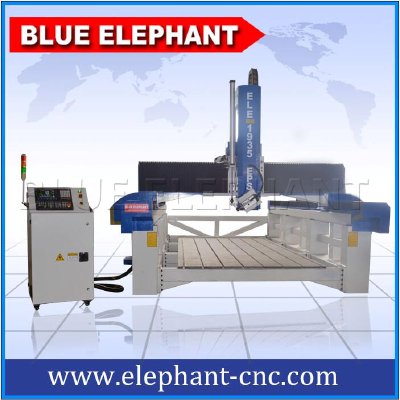

ELE 1935 EPS cnc wood carving machine , 4 axis cnc router machine for foam mold making

ELE 1935 EPS cnc wood carving machine , 4 axis cnc router machine for foam mold making

  • Min.Order Quantity: 1 Set
  • Supply Ability: 200 Sets per Month
  • Port: Qingdao
  • Payment Terms: L/C,D/A,D/P,T/T,Western Union
Get Latest Price:
  • *Quantity: Set/Sets
| Factory
Experience:2013-04-03
Buyer Protection

- Guaranteed Secure Payments on Every Order

- Refund if your item is not delivered or as described

- Buyer Protection after order confirmation

Latest Browsing
Product Details
  • Place of Origin:  China
  • Brand Name:  BLUE ELEPHANT
  • Model Number:  ELE 1935
  • Weight: 4000.000 kg

ELE 1935 EPS cnc wood carving machine , 4 axis cnc router machine for foam mold making

Product Description

Advantage:



1.Self-lubricating, life-long maintenance-free Taiwan guide rail.

2.Italian high-speed spindle, with top speed of 18000rpm, guaranteering maximum processing efficiency and productivity.

3.Whole working table cast by resin sand. The annealing and other heat treatment methods ensure that the whole structure is tested to the limit for sturdiness and reliability.

4.Taiwan controller reads the codes in an efficient manner. Online simulation and monitoring function are available. Processing efficiency and safety are guaranteed.

Features:



1.Effective working area :1900x3500x800mm

2, Italy HSD brand air cooling spindle: 4.5kw

3, 4th axis can move ±100°

4.Taiwan DELTA inverter: 5.5kw

5, Japan YASKAWA servo driver 850KW

6, Taiwan SYNTEC control system 4 axis 6MB model

7, Helical rack gear for X, Y axis, Taiwan TBI ball screw for Z travel

8, Taiwan TBI ball screw with high precision

9.Divided structure bed structure ,Fixing with screws

10.Working table:T-slot working table.

11.Japan Shimpo reducer



Parameters:



Number

Description

Parameter

1

X,Y,Z Working Area

1900x3500x800 mm*±100°

2

Effective working area

2860x3500x1450 mm

3

X,Y,Z Traveling Positioning Accuracy

±0.01/300mm

4

X,Y,Z Repositioning Accuracy:

±0.01mm

5

Table Surface

T-slot Table

6

Frame

Divided structure bed structure ,Fixing with screws

7

X,Y Structure

Helical rack gear , 4pcs HIWIN #35 Linear guide

8

Z Structure

TBI ball screw,4 pcs slider

9

Max. Power Consumption

(Without Spindle) 6Kw

10

Max. Rapid Travel Rate

40000mm/min

11

Max. Working Speed

30000mm/min

12

Spindle Power

HSD spindle 4.5kw

13

Spindle Speed

0-18000RPM

14

Drive Motors

Japan 850W YASKAWA servo

15

Working Voltage

AC380V/50/60Hz,3PH (Option: 220V))

16

Command Language

G Code

17

Operating System

SYNTEC Control System 6MB

18

Computer Interface

USB

19

Flash Memory

512M

20

Collet

ER30

21

X,Y Resolution

<0.01mm

22

Software Compatibility

UG , Power mill

23

Running Environment  Temperature

0 - 45 Centigrade

24

Relative Humidity

30% - 75%

Application:



Ideal for automobile mold industry, suitable for EPS foam, casting wood mold, automobile interior decoration, engineering plastic and other non-metal materials .
