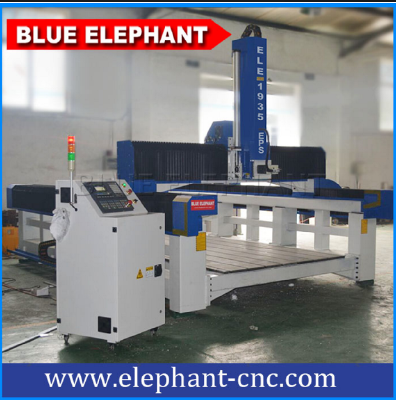

- Place of Origin: China
- Brand Name: BLUE ELEPHANT
- Model Number: 1935
Number | Description | Parameter |
1 | X,Y,Z Working Area | 1900x3500x800 mm*±100° |
2 | Effective working area | 2860x3500x1450 mm |
3 | X,Y,Z Traveling Positioning Accuracy | ±0.01/300mm |
4 | X,Y,Z Repositioning Accuracy: | ±0.01mm |
5 | Table Surface | T-slot Table |
6 | Frame | Divided structure bed structure ,Fixing with screws |
7 | X,Y Structure | Helical rack gear , 4pcs HIWIN #35 Linear guide |
8 | Z Structure | TBI ball screw,4 pcs slider |
9 | Max. Power Consumption | (Without Spindle) 6Kw |
10 | Max. Rapid Travel Rate | 40000mm/min |
11 | Max. Working Speed | 30000mm/min |
12 | Spindle Power | HSD spindle 4.5kw |
13 | Spindle Speed | 0-18000RPM |
14 | Drive Motors | Japan 850W YASKAWA servo |
15 | Working Voltage | AC380V/50/60Hz,3PH (Option: 220V)) |
16 | Command Language | G Code |
17 | Operating System | SYNTEC Control System 6MB |
18 | Computer Interface | USB |
19 | Flash Memory | 512M |
20 | Collet | ER30 |
21 | X,Y Resolution | <0.01mm |
22 | Software Compatibility | UG , Power mill |
23 | Running Environment Temperature | 0 - 45 Centigrade |
24 | Relative Humidity | 30% - 75% |
- Place of Origin: China
- Brand Name: BLUE ELEPHANT
- Model Number: 1935
Number
Description
Parameter
1
X,Y,Z Working Area
1900x3500x800 mm*±100°
2
Effective working area
2860x3500x1450 mm
3
X,Y,Z Traveling Positioning Accuracy
±0.01/300mm
4
X,Y,Z Repositioning Accuracy:
±0.01mm
5
Table Surface
T-slot Table
6
Frame
Divided structure bed structure ,Fixing with screws
7
X,Y Structure
Helical rack gear , 4pcs HIWIN #35 Linear guide
8
Z Structure
TBI ball screw,4 pcs slider
9
Max. Power Consumption
(Without Spindle) 6Kw
10
Max. Rapid Travel Rate
40000mm/min
11
Max. Working Speed
30000mm/min
12
Spindle Power
HSD spindle 4.5kw
13
Spindle Speed
0-18000RPM
14
Drive Motors
Japan 850W YASKAWA servo
15
Working Voltage
AC380V/50/60Hz,3PH (Option: 220V))
16
Command Language
G Code
17
Operating System
SYNTEC Control System 6MB
18
Computer Interface
USB
19
Flash Memory
512M
20
Collet
ER30
21
X,Y Resolution
<0.01mm
22
Software Compatibility
UG , Power mill
23
Running Environment Temperature
0 - 45 Centigrade
24
Relative Humidity
30% - 75%
