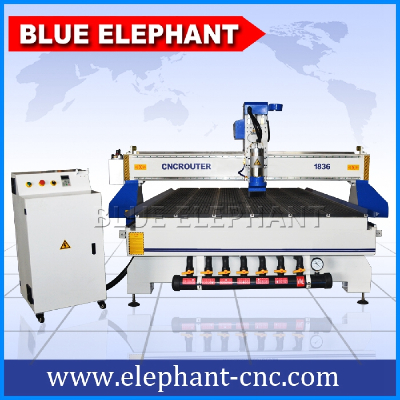

ELE 1836 cnc engraver machine , china cnc router machine with water cooled spindle
Product Description
Features of woodworking cnc router:
Working area: 1800mm*3600mm *200mm
1kw Japan YASKAWA servo driver and motor, with 5.5kw FULING inverter. Double motors for Y axis.
China high quality water cooling spindle 5.5KW, with CW3000 industry chiller.
DSP control system with USB interface
About transmission: Z axis with Taiwan TBI Ball screw transmission; X,Y axis with high precision helical rack gear transmission; X,Y,Z axis with Taiwan HIWIN Linear Guide
Option: 7.5kw water circulation vacuum pump and 3kw double packet dust collector
Parameters of woodworking cnc router:
1 | Model | 1836 |
2 | X,Y,Z Working Area | 1800x3600x200mm |
3 | X,Y,Z Traveling Positioning Accuracy | ±0.03/300mm |
4 | X,Y,Z Repositioning Accuracy | ±0.03mm |
5 | Table Surface | Vacuum and T-slot Combined |
6 | Frame | Thicken steel Square Tube Heavy structure , 8mm thicken steel gantry with T type |
7 | X, Y Structure | Gear and rack transmission, Taiwan HIWIN Linear Rail |
8 | Z Structure | Taiwan TBI Ball Screw, Taiwan HIWIN Linear Rail |
9 | Max. Power Consumption | (Without Spindle) 4.5Kw |
10 | Max. Rapid Travel Rate | 60000mm/min |
11 | Max. Working Speed | 25000mm/min |
12 | Spindle Power | 5.5kw water cooling spindle with CW3000 industry chiller |
13 | Spindle Speed | 0-24000RPM |
14 | Drive Motors | 850w YASKAWA Servo Motor and 1kw Servo Driver |
15 | Working Voltage | AC380V/50/60Hz,3PH (Option: 220V) |
16 | Command Language | G Code, PLT |
17 | Operating System | DSP control system |
18 | Computer Interface | USB interface |
19 | Collet | ER25 |
20 | Inverter | 5.5kw Fuling Inverter |
21 | Software Compatibility | Type 3 /Artcam |
Application
Applications of woodworking cnc router:
1.Wood furnitur industry: Wave plate, fine pattern, antique furniture, wooden door, screen, craft sash, composite gates, cupboard doors, interior doors, sofa legs, headboards and so on.
2.Advertising industry: Advertising indentification, sign making, acrylic engraving and cutting, crystal word making, blaster molding, and other advertising materials derivatives making.
3.Die industry: A sculpture of copper, aluminum, iron and other metal molds, as well as artificial marble, sand , plastic sheeting, PVC pipe, wooden planjs and other non-metallic mold.
4.Relief sculpture and 3D engraving.
About the FAQ:
Question 1: I want to buy this machine,what suggestion can you give?
Answer: Please tell me what material do you process? What's the size of your material?(Better show me your product picture)
Question 2: which kind of materials can be processed on this machine ?
Answer: Wood, mdf, stone, acrylic, glass, plastic, foam, aluminium, copper, and almost all kinds of non-steel materials.
Question 3: What's the delivery cost & time?
Answer: Please tell me your sea port name,i check shipping cost. After production,
we'll deliver ASAP.
Question 4: Have you exported to our country?
Answer: We have been in this field for 11 years,we have CE,CO,ISO,FDA certificates,have exported to Europe,South America,Arab,Asia,Russia,Spain,Australia and many more countries.
