- Place of Origin: China
- Brand Name: BLUE ELEPHANT
- Model Number: ELE 1530
- Weight: 2000.000 kg

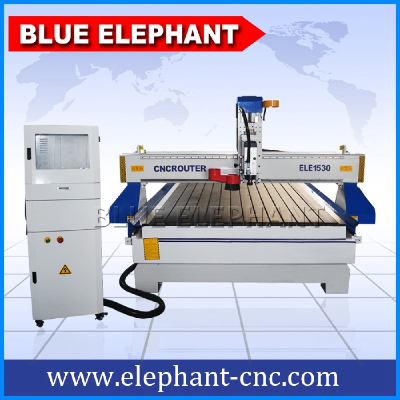

ELE 1530 china cnc router machine , 3d cnc router with vacuum system and dust collector
Features:
1500x3000x220mm working area
6kw Italy HSD air cooling spindle,18000rpm
7.5kw Taiwan Delta inverter
Original Ncstudio 53C model with computer type control box
Japan Panasonic servo motor and driver
Imported Taiwan HIWIN 20# Square Linear Guide for X,Y,Z axis
Z axis Original Taiwan TBI ball screw Transmission
T-slot working table
Manual Oil Lubrication system
Japan Ormon Limit Switch
France Schneider safety switch
Separate control box
Voltage 380V 3phase 50HZ (option:220v)
Plywood case Package
Type3/Artcam software
Technical Parameters:
Description | Parameter |
X,Y,Z Working Area | 1500x3000x200mm |
Table Surface | T-slot working Table |
Spindle | 6kw Italy HSD air cooling spindle |
X, Y Structure | 20#Taiwan HIWIN Linear guide and helical rack |
Z Structure | Ball screw and#20 Taiwan HIWIN Linear guide |
Motor and driver | Panasonic servo motor and driver |
Spindle Speed | 0-18000RPM |
Lubrication system | Manual |
Inverter | 7.5kw Taiwan Delta Inverter |
Command Language | G Code |
Control System | NCStudio 53C control system |
Computer Interface | USB |
Flash Memory | 512M(U Disk) |
Collet | ER 32 |
X,Y Resolution | <0.01mm |
Software Compatibility | Type3 Software, (Option: Artcam Software) |
Running Environment Temperature | 0 - 45 Centigrade |
Relative Humidity | 30% - 75% |
Application
Furniture:ideally suitable for processing cabinet door,wooden door,solid wood furniture,panel wood furniture,windows,tables and chairs,etc.
Well suited for processing panel.insulating materials,plastic,expoxy resin.carbon mixed compound,etc.
Packaging and shipping:
1.Outside Package:Standard export wooden case .
2.Inner package:strech film .
For shipping,you can choose the sea shipping,air shipping or the transmission of expressage:DHL/TNT/Fedex.
For terms of payment,you can choose the EXW/FOB/CIF/DDP/DDU.It depends on what you would like better.
Please contact us ,
So we can help you select the right system to meet your needs and fit your budget !
Contact: Jack Zhang
Email: manager@elephant-cnc.com
Mobile/whatsapp: 0086-15064026772
Web: www.elephant-cnc.com
blueelephant.en.alibaba.com
blueelephant-cnc.en.made-in-china.com
