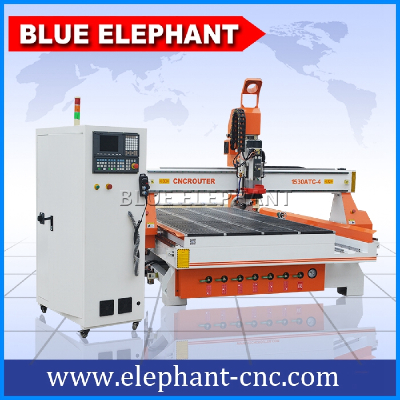

ELE 1530 automatic cabinet door making machine , linear atc cnc router woodworking machine with rotate axis

ELE 1530 automatic cabinet door making machine , linear atc cnc router woodworking machine with rotate axis

  • Min.Order Quantity: 1 Set
  • Supply Ability: 200 Sets per Month
  • Port: Qingdao
  • Payment Terms: L/C,D/A,D/P,T/T,Western Union
Get Latest Price:
  • *Quantity: Set/Sets
| Factory
Experience:2013-04-03
Buyer Protection

- Guaranteed Secure Payments on Every Order

- Refund if your item is not delivered or as described

- Buyer Protection after order confirmation

Latest Browsing
Product Details
  • Place of Origin:  China
  • Brand Name:  BLUE ELEPHANT
  • Model Number:  ELE 1530

ELE 1530 automatic cabinet door making machine , linear atc cnc router woodworking machine with rotate axis



Features:



  • 9kw Italy HSD air cooling spindle

  • 11KW Taiwan DELTA inverter

  • Taiwan SYNTEC control system

  • Japan YASKAWA servo motor and driver

  • Taiwan HIWIN #25 linear guide for X Y Z axis

  • Taiwan TBI #2510 ball screw

  • Vacuum & T-slot combined worktable

  • France Schneider safety switch

  • Taiwan SYNTEC MPG handle wheel

  • Manual lubrication system

  • Automatic tool sensor calibration

  • Japan OMRON limit switch for X,Y,Z axis

  • Shanghai Cardiff Highly flexible towline,fire-resitant double-sheathed cable

  • Type3 or Art cam software

  • Rotary device: 300mm diameter with 2400mm working length

  • 3kw double packet dust collector

  • auto oil mist cooling sprayer

  • 7.5kw air vacuum pump

  • Japan Shimpo Planetary drive

Parameters:

Description

Parameter

X,Y,Z Working Area

1500x3000x200mm

Table Size

1500×3000mm

Table Surface

Vacuum and T-slot working table

Frame

Welded Structure

X, Y Structure

Rack and Pinion Drive, Hiwin Rail Linear Bearings

Z Structure

Hiwin Rail Linear Bearings and TBI Ball Screw

Max. Power Consumption

(Without Spindle)  3.2Kw

Spindle Power

9kw Italy HSD ATC air cooling spindle

Spindle Speed

0-24000RPM

Drive Motors

850W Japan YASKAWA servo motor

Working Voltage

380v, 3 phase, 50/60HZ(Option: AC220V/50/60Hz,3PH)

Command Language

G Code

Operating System

Taiwan SYNTEC 6MB control System

Computer Interface

USB

Rotary device

300mm diameter*2500mm length

Collet

ISO 30

X,Y Resolution

<0.01mm

Software Compatibility

Type3/UcancameV9 Software, (Option: Artcam Software)

Running Environment  Temperature

0 - 45 Centigrade

Relative Humidity

30% - 75%

Applicantion:



1. WoodFurniture Industry: Wave Plate, fine pattern, antique furniture, wooden door, screen, craft sash,composite gates, cupboard doors, interior doors, sofa legs, headboards and so on.



2.Advertising industry: advertising identification, sigh making, Acrylic engraving and cutting,crystal word making, blaster molding, and other advertising materials derivatives making.



3.Die industry: A sculpture of copper, aluminum, iron and other metal molds, as well as artificial marble, sand, plastic sheeting,PVC pipe, wooden planks and other non-metallic mold.



4.relief sculpture and 3D engraving



5.Cylindrical object

FAQ



 Q:This is the first time I use this kind of machine, is it easy to operate?


Re: There are english manual or guide video that show how to use machine.
If there is still have any question, please contact us by e-mail / skype/ phone /trademanager online service at any time.



Q:If machine have any problem after I receive it, how can I do ?


Re:Free parts send to you in machine warranty period if machine have any problem.
If the parts less than 0.5KG, we pay the postage.
If it exceeds 0.5KG, you need to pay the postage.


Q: MOQ
Re: 1 set machine, mixed order is also welcomed.



Q: How can I buy this machine from you?   ( Very easy and flexible !)



1. Consult us about this product on line or by e-mail.

2. Negotiate and confirm the final price , shipping , payment methods and other terms.

3. Send you the proforma invoice and confirm your order.

4. Make the payment according to the method put on proforma invoice.

5. We prepare for your order in terms of the proforma invoice after confirming your full payment. And 100% quality check before shipping.

6. Send your order by air or by sea.
