- Place of Origin: China
- Brand Name: BLUE ELEPHANT
- Model Number: ELE 1325
- Weight: 1500.000 kg

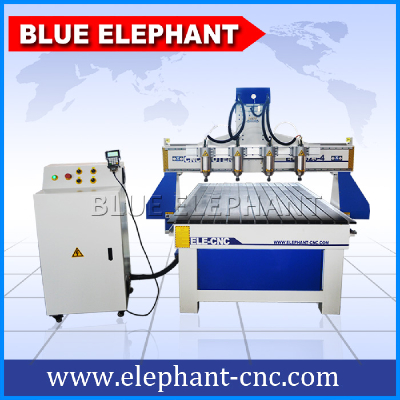

ELE 1325 multi spindle cnc machine woodworking , 4 axis cnc engraving machine for wooden plate
Product Description
Advantages:
1.Classical type frame with 6 legs of 150*150 mm steel tube , more stronger.
2.Chinese Lead shine Hybrid Servo motor and drive 1103 HBM-120H-BZ-1000 , it’s the new type Lead shine Hybrid servo.
3.Each spindle has one independent switch , it’s more convenient to control each spindle.
The second spindle can carving 1300 mm.
Features:
1.1300*2500*200mm working area,T-slot working table with PVC protection.
2.4 pcs 3kw Changsheng water cooling spindles , 24000rpm/min , working at the same time.The second spindle can cover 1300mm for X direction.
3.4 Axis DSP A18 control system with cabinet with 2 doors.
4.4pcs 3.7kw Fuling inverter.
5.Chinese Leadshine Hybrid Servo motor 1103 HBM-120H-BZ-1000, driver HBS2206 for X axis,Y axis,and rotary device.
6.Auto lubrication system
7.France Schneider Safety switch
8.Tool Sensor calibration
9.Japan OMRON limit switch for X,Y,Z axis
Parameters:
Description | Parameter |
Max working area | 1300mm*2500*200mm effective working area |
Control system | DSP A18 4 axis control system |
Spindle | 3kw Changsheng water cooling spinlde*4pcs |
Inverter | 3.7kw Fuling inverter*4pcs |
Spindle speed | 0-24000RPM/min |
Motor and driver | Leadshine hybrid servo motor |
Table structure | Classical type frame with 6 legs of 150*150 mm steel tube |
Table surface | T-slot working table with PVC slot |
X,Y axis structure | #20 Taiwan HINWIN linear guide rail,helical rack |
Z axis structure | Taiwan TBI ball screw |
Max working speed | 20000 mm/min |
Cooling mode | water cooling |
Working voltage | 380 3-Phase 50-60 Hz |
Running Environment Temperature | 0 - 45 Centigrade |
Relative Humidity | 30% - 75% |
Applications:
Applicable industies:Furniture,wood door,cabinet,mdf, Arts & Crafts,wood sculptures,3D relief Business Signs,aluminum and so on.with 4 pcs spindles,apply for mass processing ,can improve work efficiency.
Our service:
1, Within 7 days since your local customs clearance: if the cnc router’s any parts has any problems, we will change it free.
2, Exceed 7 days since your local customs clearance but within warranty period: if the cnc router parts have any problems, we can change the old machine parts to new ones free, but you should pay all the shipping cost.
3, Exceed warranty period: if the cnc router parts have any problems, we can offer new machine parts with cost price and you also should pay all the shipping cost.
4, We offer 24 hours technical support by call, and email.
5, Our technician can give you remote guide online(Skype or MSN) if you have any question.
6, We can record videos of operating the laser machine.
7, Free training course in our factory.
8.Machine will be adjusted before it is delivered , operation disk/CD was included.
Contact: Jack Zhang
Email: manager@elephant-cnc.com
Mobile/whatsapp: 0086-15064026772
Web: www.elephant-cnc.com
blueelephant.en.alibaba.com
blueelephant-cnc.en.made-in-china.com
