- Place of Origin: China
- Brand Name: BLUE ELEPHANT
- Model Number: ELE 1325
- Weight: 1500.000 kg
- :
- :
- :
- :
- :
- :
- :

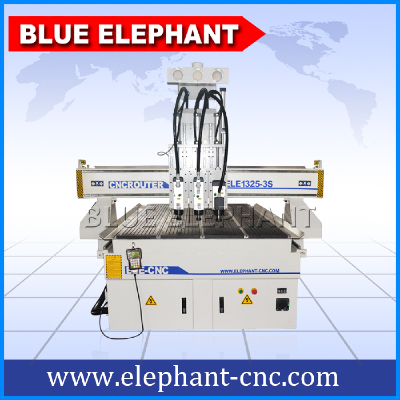

ELE 1325 high precision cnc wood door engraving machine , cnc router for untique furniture
Product Description
Advantages:
New type thicker and bigger heavy duty welded frame and gantry
2* 3 KW HSD 4.5 KW HSD air cooling spindle with good quality for cutting and carving.
YAKO 2811 bigger and stronger driver for long time working.
DSP A15 handle controller ,very convenience for operation.
Features:
------working size:1300*2500*200mm
------spindle:3kw*2 HSD air cooling spindle; 4.5kw HSD air cooling spindle
------Inverter:5.5kw Taiwan Delta inverter
------DSP A15 control system
------motor and driver: FL118 stepper motor and YAKO 2811 bigger and stronger driver
------working table:T-slot &vacuum work table
------Taiwan HIWIN Linear Guide #20 for XYZ axis
------helical rack & gear transmission for XY axis
------Taiwan TBI ball screw for Z axis
------Japan Omron Limit switch
------FrenchSchneider rotary safety switch
------New type thicker and bigger heavy duty welded frame and gantry
----- 5.5kw air type circulation vacuum pump
------Dust hood 4 pieces with 3 pipe and one support
------220 v 3phase 50 hz(380v for optional)
Parameters:
| Descriptions | Parameters |
| Modle | ELE1325-3S |
| Working area | 1300*2500*200mm |
| Control system | DSP A15 control system |
| Spindle | 1 set 4.5kw HSD air cooling spindle , 2 set 3kw HSD air cooling spindle |
| Spindle speed | 0-18000RPM |
| Inverter | 5.5kw Taiwan DELTA Inverter |
| Motor and driver | FL118 stepper motor , YAKO 2811 big driver |
| Voltage | 220V, 3ph, 50Hz(380v for optional) |
| Linear rail | Taiwan HINWIN/PMI 20# linear guide |
| Table structure | New type thicker and bigger heavy duty welded frame and gantry |
| Table surface | Vacuum T-slot working table,4 zones |
| X,Y axis transmission | Helical rack and pinion drive for X,Y axis |
| Z axis transmission | Taiwan TBI 2510 ball screw for z axis |
| Vacuum pump | 5.5kw air type circulation vacuum pump |
Applications:
Strong functions, easy operation, durable, reliable performance, high efficiency, applicable to wood , MDF , acrylic , mainly for doors , cabinet , furniture , any wooden products, antique furniture, crafts gifts, relief processing.
1. WoodFurniture Industry: Wave Plate, fine pattern, antique furniture, wooden door, screen, MDF, craft sash, composite gates, cupboard doors, interior doors, sofa legs, headboards and so on.
2.Advertising industry: advertising identification, sign making, Acrylic engraving and cutting, crystal word making, blaster molding, and other advertising materials derivatives making.
Contact: Jack Zhang
Email: manager@elephant-cnc.com
Mobile/whatsapp: 0086-15064026772
Web: www.elephant-cnc.com
blueelephant.en.alibaba.com
blueelephant-cnc.en.made-in-china.com
