- Place of Origin: China
- Brand Name: BLUE ELEPHANT
- Model Number: 1325

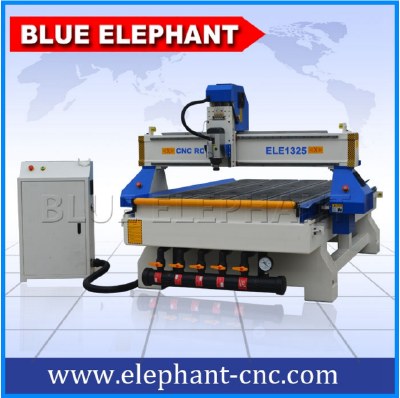

Parameters of auto feeding cnc router:
Descirptions | Parameters |
Modle | ELE1325 |
Working area | 1300*2500*200mm |
Voltage | 380V, 3phase, 50Hz |
Control system | DSP A11 control system |
Spindle | 4.5kw HSD air cooling spindle |
Spindle speed | 0-18000RPM |
Inverter | 5.5kw E type Taiwan DELTA inverter |
Motor | FL118 stepper motor |
Driver | Leadshine 860H driver |
Linear rail | Taiwan #20 HIWIN linear guide |
X,Y axis transmission | X,Y axis rack and pinion drive |
Z axis transmission | Z axis Taiwan TBI ball screw |
Table surface | T-slot and vacuum working table |
Table structure | New type thicker and bigger heavy duty welded frame and gantry |
Dust collector | 3kw new type double packets dust collector, 380V, 3ph, 50Hz |
Options | Japan OMRON Limit switch |
PS:All the working area and specifications can be customized according to your requests.
Applications:
1.Wood furnitur industry: Wave plate, fine pattern, antique furniture, wooden door, screen, craft sash, composite gates, cupboard doors, interior doors, sofa legs, headboards and so on.
2.Advertising industry: Advertising indentification, sign making, acrylic engraving and cutting, crystal word making, blaster molding, and other advertising materials derivatives making.
3.Die industry: A sculpture of copper, aluminum, iron and other metal molds, as well as artificial marble, sand , plastic sheeting, PVC pipe, wooden planjs and other non-metallic mold.
Packaging & Delivery:
Packaging Details: 1.Outside package:Standard marine export plywood case.
2.inner package:Stretch film and plastic film for humidity.
We can package according to your requests.
Delivery Detail: Shipped in 15 working days after payment.
Our Services
Guarantee and After-sale service:
12 months for the whole machine .
1, Technical support by phone , email or MSN/Skype around the clock
2, Friendly English version manual and operation video CD disk
3, Engineer available to service machinery overseas
FAQ
FAQ:
Q1: I need a cnc router, can you give me some suggestions?
Sure, but to suggest you the most suitable machine, I need to know further informations such as effective processing area , materials etc.
Q2: which kind of materials can be processed on this machine?
Wood, mdf, stone, acrylic, glass, plastic, foam, aluminium, copper, and almost all kinds of non-steel materials.
Q3: can I process round /cylinder workpiece such as chair legs?
Of course, Only need to add a set of rotary device, you can engrave all kinds of cylinder materials.
Q4: Are you a factory or trading company?
We are the manufacturer and we have 10 years factory experience .As only the machine made by ourself ,quality can be trusted, and most important thing is we can do better service after sales. we know how to fix the problem in each parts easliy. so welcome to visit to our factory
Q5: How long is the delivery time?
For standard machines, it would be 7-10 days; For non-standard machines and customized machines according to client s specific requirements, it would be 15 to 30 days.
Q6: How should I pay for my order ? what is the procession of this purchase?
You can do 30% prepayment at first, then we will start to make production. When the machine is ready , we will take pictures to you, and then you can do the ballance.after we got your payment. We will send the machine to you.
Contace Us
Jinan Blue Elephant CNC Machinery Co., Ltd
is located in Jinan City, Shandong Province. We have always been developed to the research and manufacturer of CNC router machine and laser cutting engraving machine.
We have our R & D department, Quality control department, and after sale & service department.
Our products are widely used in Woodworking, Advertising, Model, Electric, CAD/CAM Industry model, Clothing, Package Printing, Marking, Laser sealing and so on.
We had got CE and FDA certification always offer best quality machine.
Our Philosophy: To Be First Brand -- CNC Manufacturer & wholesaler Platform!
Just looking forward to service every customer, like you.
Looking forward for the agents from all over the world! Welcome to contact us!
Contact Us:
Contact: Jack Zhang
Email: manager@elephant-cnc.com
Mobile/whatsapp: 0086-15064026772
Web: www.elephant-cnc.com
blueelephant.en.alibaba.com
blueelephant-cnc.en.made-in-china.com
- Place of Origin: China
- Brand Name: BLUE ELEPHANT
- Model Number: 1325
Descirptions | Parameters |
Modle | ELE1325 |
Working area | 1300*2500*200mm |
Voltage | 380V, 3phase, 50Hz |
Control system | DSP A11 control system |
Spindle | 4.5kw HSD air cooling spindle |
Spindle speed | 0-18000RPM |
Inverter | 5.5kw E type Taiwan DELTA inverter |
Motor | FL118 stepper motor |
Driver | Leadshine 860H driver |
Linear rail | Taiwan #20 HIWIN linear guide |
X,Y axis transmission | X,Y axis rack and pinion drive |
Z axis transmission | Z axis Taiwan TBI ball screw |
Table surface | T-slot and vacuum working table |
Table structure | New type thicker and bigger heavy duty welded frame and gantry |
Dust collector | 3kw new type double packets dust collector, 380V, 3ph, 50Hz |
Options | Japan OMRON Limit switch |
PS:All the working area and specifications can be customized according to your requests.
