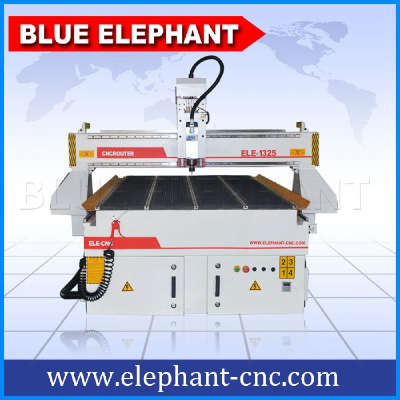

ELE 1325 Air cooling furniture making machine , wood carving cnc router for wood doors

ELE 1325 Air cooling furniture making machine , wood carving cnc router for wood doors

  • Min.Order Quantity: 1 Set
  • Supply Ability: 200 Sets per Month
  • Port: Qingdao
  • Payment Terms: L/C,D/A,D/P,T/T,Western Union
Get Latest Price:
  • *Quantity: Set/Sets
| Factory
Experience:2013-04-03
Buyer Protection

- Guaranteed Secure Payments on Every Order

- Refund if your item is not delivered or as described

- Buyer Protection after order confirmation

Latest Browsing
Product Details
  • Place of Origin:  China
  • Brand Name:  BLUE ELEPHANT
  • Model Number:  ELE 1325
  • Weight: 1400.000 kg

ELE 1325 Air cooling furniture making machine , wood carving cnc router for wood doors

Features



  • ELE-1325 is an economic processing center, with heavy duty welded structure.The work table is international leading vacuum adsorption.It can adsorb different size materials.

  • Optional wheels help move the machine,more convenient. Optional air gun help clean the worktable.

  • With DSP control system, It can support offline operation.

  • HIWIN/PMI linear rail from Taiwan for 3 axes, more stable and precise,low noise,and its lifetime is 10 times longer than common rail way.

  • Standard configured with Italy HSD air cooling spindle, high power and efficient. Very famous brand,has after-sale service all over the world. Matched with Taiwan DELTA inverter.

  • Helical rack gear transmission,which can ensure faster speed,higher efficiency,stronger power,longer lifetime,and it makes the machine more stable.

  • Standard configured with stepper motor FL118 and YAKO 2811 big driver,very powerful. For option,we can change toJapan YASKAWA servo or Taiwan DELTA servo motors and drivers.



Parameters



Description

Parameter

X,Y,Z Working Area

1300x2500x200mm

Control system

DSP A11

Table Surface

Vacuum&T-slot Table

Spindle

3kw Italy HSD air cooling spindle

X, Y Structure

#20 Taiwan HIWIN Linear guide rail and helical rack

Z Structure

Ball screw and #20 Taiwan HIWIN Linear guide rail

Driver and Motor

Stepper:YAKO 2811 big drive,FL118 stepper motor

Inverter

3.7kw Fuling Inverter

Max. Rapid Travel Rate

45000mm/min

Max. Working Speed

30000mm/min

Software

Artcam /Type 3 software

Spindle Speed

0-18000RPM

Lubrication system

Manual

Command Language

G Code

Computer Interface

USB

Collet

ER25

X,Y Resolution

<0.01mm

Software Compatibility

Type3/Artcam Software

Running Environment  Temperature

0 - 45 Centigrade

Relative Humidity

30% - 75%



PS:All the working area and specifications can be customized according to your requests.

Optional parts of wood carving machine



1.Reducer:Germany Eisele/Japan Shimpo/Taiwan APEX

2.Lubrication system:Manual or automatic lubrication system

3.Vacuum pump:Germany Becker/Tongyou vacuum pump

4.Rotary device: Dimensions can be customized

5.Dust collector:Single or double packet dust collector

6.Cooling system:Simple cooling or mist cooling system

Applications



Furniture:ideally suitable for processing cabinet door,wooden door,solid wood furniture,panel wood furniture,windows,tables and chairs,etc.



Well suited for processing panel.insulating materials,plastic,expoxy resin.carbon mixed compound,etc.

Packaging and shipping

1.Outside Package: Standard export wooden case.

2.Inner package: strech film.

For shipping, you can choose the sea shipping, air shipping or the transmission of expressage: DHL/TNT/Fedex.



For terms of payment, you can choose the EXW/FOB/CIF/DDP/DDU. It depends on what you would like better.

Our Services

Our Service:



1, Within 7 days since your local customs clearance: if the cnc router’s any parts has any problems, we will change it free.
2, Exceed 7 days since your local customs clearance but within warranty period: if the cnc router parts have any problems, we can change the old machine parts to new ones free, but you should pay all the shipping cost.
3, Exceed warranty period: if the cnc router parts have any problems, we can offer new machine parts with cost price and you also should pay all the shipping cost.
4, We offer 24 hours technical support by call, and email.
5, Our technician can give you remote guide online(Skype or MSN) if you have any question.
6, We can record videos of operating the laser machine.
7, Free training course in our factory.
8.Machine will be adjusted before it is delivered, operation disk/CD was included.

FAQ

FAQ:



Q1: I need a cnc router, can you give me some suggestions?
Sure, but to suggest you the most suitable machine, I need to know further informations such as effective processing area , materials etc.

Q2: which kind of materials can be processed on this machine ?
Wood, mdf, stone, acrylic, glass, plastic, foam, aluminium, copper, and almost all kinds of non-steel materials.

Q3: can I process round /cylinder workpiece such as chair legs ?
Of course, Only need to add a set of rotary device, you can engrave all kinds of cylinder materials.

Q4: Are you a factory or trading company?
We are the manufacturer and we have 10 years factory experience .As only the machine made by ourself ,quality can be trusted, and most important thing is we can do better service after sales. we know how to fix the problem in each parts easliy. so welcome to visit to our factory

Q5: How long is the delivery time?
For standard machines, it would be 7-10 days; For non-standard machines and customized machines according to client s specific requirements, it would be 15 to 30 days.

Q6: How should I pay for my order ? what is the procession of this purchase ?
You can do 30% prepayment at first, then we will start to make production. When the machine is ready , we will take pictures to you, and then you can do the ballance.after we got your payment. We will send the machine to you.

Company Information

Company Information:



Jinan Blue Elephant CNC Machinery Co., Ltd is located in Jinan City, Shandong Province. We have always been developed to the research and manufacturer of CNC router machine and laser cutting engraving machine.
We have our R & D department, Quality control department, and after sale & service department.
Our products are widely used in Woodworking, Advertising, Model, Electric, CAD/CAM Industry model, Clothing, Package Printing, Marking, Laser sealing and so on.
We had got CE and FDA certification always offer best quality machine.
Our Philosophy: To Be First Brand -- CNC Manufacturer & wholesaler Platform!
Just looking forward to service every customer, like you.

Contact:  Jack Zhang

Email: manager@elephant-cnc.com

Mobile/whatsapp: 0086-15064026772

Web: www.elephant-cnc.com

                blueelephant.en.alibaba.com

                               blueelephant-cnc.en.made-in-china.com
