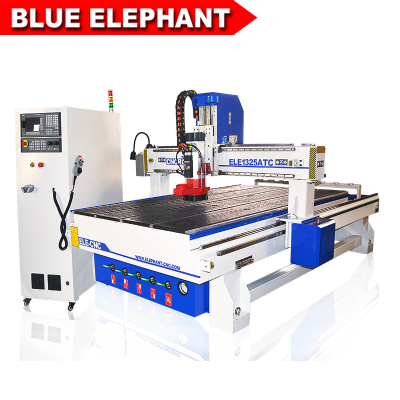

ELE-1325 ATC woodworking cnc router for engraving woodworking

ELE-1325 ATC woodworking cnc router for engraving woodworking

  • Min.Order Quantity: 1 Set
  • Supply Ability: 200 Sets per Month
  • Port: Qingdao
  • Payment Terms: L/C,D/A,D/P,T/T,Western Union,Other
Get Latest Price:
  • *Quantity: Set/Sets
| Factory
Experience:2013-04-03
Buyer Protection

- Guaranteed Secure Payments on Every Order

- Refund if your item is not delivered or as described

- Buyer Protection after order confirmation

Latest Browsing
Product Details
  • Place of Origin:  China
  • Brand Name:  BLUE ELEPHANT
  • Model Number:  1325
  • Condition: New                                       Place of Origin: Shandong, China (Mainland)

  • CNC or Not: CNC                                    Spindle power: Italy 9kw air cooling spindle

  • Brand Name: BLUE ELEPHANT                  Spindle rotation speed: 0-24000RPM

  • Power(W): 9kw                                       Dimension(L*W*H): 3800*2300*1900mm

  • Certification: CE,CIQ,FDA                         Voltage: AC220V/380V,50Hz/60HZ

  • Warranty: 12 months                              X,Y,Z Repositioning Accuracy: ±0.03mm

  •  Weight: 1700kgs                                    X,Y,Z Traveling Positioning Accuracy:±0.03/300mm

  •  Model Number: ELE-1325ATC                            Z Structure: Taiwan TBI Ball Screw, Taiwan HIWIN Linear Rail

  •  product: China cnc router 1325                Max. Working Speed: 25000mm/min

  • Tools number: 8 Positions ATC                  Max. Rapid Travel Rate: 60000mm/min

  • Table Surface: Vacuum and T-slot Combined

    After-sales Service Provided: Engineers available to service machinery overseas


  • Place of Origin:  China
  • Brand Name:  BLUE ELEPHANT
  • Model Number:  1325
  • Condition: New                                       Place of Origin: Shandong, China (Mainland)

  • CNC or Not: CNC                                    Spindle power: Italy 9kw air cooling spindle

  • Brand Name: BLUE ELEPHANT                  Spindle rotation speed: 0-24000RPM

  • Power(W): 9kw                                       Dimension(L*W*H): 3800*2300*1900mm

  • Certification: CE,CIQ,FDA                         Voltage: AC220V/380V,50Hz/60HZ

  • Warranty: 12 months                              X,Y,Z Repositioning Accuracy: ±0.03mm

  •  Weight: 1700kgs                                    X,Y,Z Traveling Positioning Accuracy:±0.03/300mm

  •  Model Number: ELE-1325ATC                            Z Structure: Taiwan TBI Ball Screw, Taiwan HIWIN Linear Rail

  •  product: China cnc router 1325                Max. Working Speed: 25000mm/min

  • Tools number: 8 Positions ATC                  Max. Rapid Travel Rate: 60000mm/min

  • Table Surface: Vacuum and T-slot Combined

    After-sales Service Provided: Engineers available to service machinery overseas
