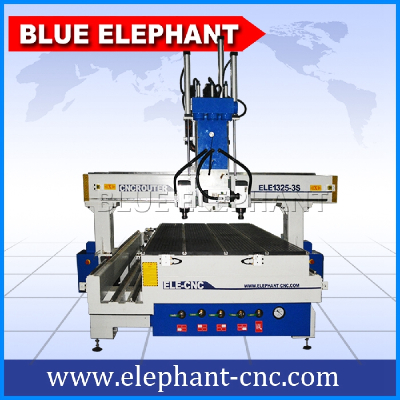

ELE 1325-3S pneumatic system 3 spindle cnc router , 3d cnc wood carving machine with atc function

ELE 1325-3S pneumatic system 3 spindle cnc router , 3d cnc wood carving machine with atc function

  • Min.Order Quantity: 1 Set
  • Supply Ability: 200 Sets per Month
  • Port: Qingdao
  • Payment Terms: L/C,D/A,D/P,T/T,Western Union
Get Latest Price:
  • *Quantity: Set/Sets
| Factory
Experience:2013-04-03
Buyer Protection

- Guaranteed Secure Payments on Every Order

- Refund if your item is not delivered or as described

- Buyer Protection after order confirmation

Latest Browsing
Product Details
  • Place of Origin:  China
  • Brand Name:  BLUE ELEPHANT
  • Model Number:  ELE 1325

ELE 1325-3S pneumatic system 3 spindle cnc router , 3d cnc wood carving machine with atc function



(more sizes for choice:1500*3000mm, 1800*3600mm, 2000*3000mm, 2000*4000mm.  We also have ATC, multi-heads, 4 axis, 5 axis and mini desktop type.)



Product Description



Brief Introduction:



  • The cnc router machine is specially designed for woodworking industrial, with pneumatic system multiple spindles auto-changing.

  • The middle spindle can rotated 90 degree for lock slot . All components used are top quality in the world.

  • Three 4.5kw HSD spindles can be changed automatically with the commands from control system.

  • Thicken and bigger steel pipe structure after special treatment, well welded, no distortion for whole structure, high precision and long using life.

  • High Z axis travel , up to 300mm , can be customized.



Features:



1.Working area:1300*2500*300mm,high Z axis travel

2.Control system:Taiwan SYNTEC 6MB control system

3.Spindle:Three 4.5kw Italy HSD spindles work one by one,The middle spindle can rotate 90°,    making lock hole and hinges.

4.Inverter:5.5kw Taiwan Delta inverter

5.Motor and driver:850w Japan YASKAWA servo driver

6.Transmission:X,Y axis #20 HINWIN square linear guide,Helical rack gear.Z axis #20 HINWIN linear guide,Taiwan TBI ball screw.

7.Working surface:T-slot & vacuum working table

8.Optional parts:5.5kw Swirl vacuum pump,1.5kw New type double bag dust collector,200*200mm rotary device



Parameters:



Description

Parameter

X,Y,Z Working Area

1300x2500x3000mm

Table Surface

T-slot & vacumm working Table

Frame

Welded Structure

X, Y Structure

#20 Tiwan HINWIN linear guide rail,helical rack gear

Z Structure

#20 Tiwan HINWIN linear guide rail,Taiwan TBI Ball Screw

Max. Power Consumption

(Without Spindle)6Kw

Spindle Power

4.5 KW Italy HSD air cooling spindle for all heads

Spindle Speed

0-18000RPM

Drive Motors

850w Japan YASKAWA servo motor and driver

Working Voltage

AC220V/50/60Hz,3PH (Option: 380V)

Command Language

G Code

Operating System

SYNTEC 6MB control system

Collet

ER32

X,Y Resolution

<0.01mm

Software Compatibility

Type3/UcancameV9 Software

Running Environment  Temperature

0 - 45 Centigrade

Application:



Strong functions, easy operation, durable, reliable performance, high efficiency, applicable to batch

process any wooden products, antique furniture, crafts gifts, relief processing.



1. WoodFurniture Industry: Wave Plate, fine pattern, antique furniture, wooden door, screen,MDF,

craft sash, composite gates, cupboard doors, interior doors, sofa legs, headboards and so on.



2.Advertising industry: advertising identification, sigh making, Acrylic engraving and cutting,

crystal word making, blaster molding, and other advertising materials derivatives making.



3.The machine is specially designed for woodworking industrial, with multiple spindles auto-changing.

Our Services

1, Within 7 days since your local customs clearance: if the cnc router’s any parts has any problems, we will change it free.
2, Exceed 7 days since your local customs clearance but within warranty period: if the cnc router parts have any problems, we can change the old machine parts to new ones free, but you should pay all the shipping cost.

3, Exceed warranty period: if the cnc router parts have any problems, we can offer new machine parts with cost price and you also should pay all the shipping cost.
4, We offer 24 hours technical support by call, and email.
5, Our technician can give you remote guide online(Skype or MSN) if you have any question.
6, We can record videos of operating the laser machine.
7, Free training course in our factory.
8.Machine will be adjusted before it is delivered , operation disk/CD was included.



Contact:  Jack Zhang

Email: manager@elephant-cnc.com

Mobile/whatsapp: 0086-15064026772

Web: www.elephant-cnc.com

                blueelephant.en.alibaba.com

                               blueelephant-cnc.en.made-in-china.com


  • Place of Origin:  China
  • Brand Name:  BLUE ELEPHANT
  • Model Number:  ELE 1325

Parameters:



Description

Parameter

X,Y,Z Working Area

1300x2500x3000mm

Table Surface

T-slot & vacumm working Table

Frame

Welded Structure

X, Y Structure

#20 Tiwan HINWIN linear guide rail,helical rack gear

Z Structure

#20 Tiwan HINWIN linear guide rail,Taiwan TBI Ball Screw

Max. Power Consumption

(Without Spindle)6Kw

Spindle Power

4.5 KW Italy HSD air cooling spindle for all heads

Spindle Speed

0-18000RPM

Drive Motors

850w Japan YASKAWA servo motor and driver

Working Voltage

AC220V/50/60Hz,3PH (Option: 380V)

Command Language

G Code

Operating System

SYNTEC 6MB control system

Collet

ER32

X,Y Resolution

<0.01mm

Software Compatibility

Type3/UcancameV9 Software

Running Environment  Temperature

0 - 45 Centigrade
