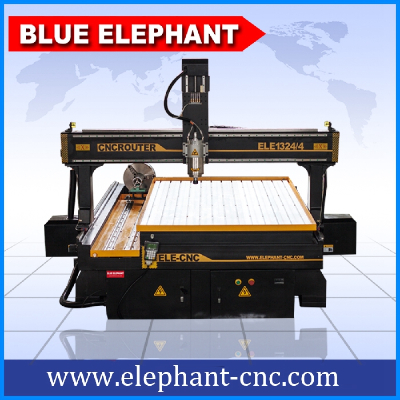

ELE 1324 stone cnc engraving machine , 4 axis cnc router engraver machine

ELE 1324 stone cnc engraving machine , 4 axis cnc router engraver machine

  • Min.Order Quantity: 1 Set
  • Supply Ability: 200 Sets per Month
  • Port: Qingdao
  • Payment Terms: L/C,D/A,D/P,T/T,Western Union
Get Latest Price:
  • *Quantity: Set/Sets
| Factory
Experience:2013-04-03
Buyer Protection

- Guaranteed Secure Payments on Every Order

- Refund if your item is not delivered or as described

- Buyer Protection after order confirmation

Latest Browsing
Product Details
  • Place of Origin:  China
  • Brand Name:  BLUE ELEPHANT
  • Model Number:  ELE 1324

ELE 1324 stone cnc engraving machine , 4 axis cnc router engraver machine

Product Description

Advantage:



1.DSP A18 4 axis control ststem

2.Well suitable for processing stone ,wood

3.The diameter of rotary axis is 300mm

4.The sink table of rotary device is made of stainless steel

5.Z axis is 400mm,Processing different materials

Features:

1. 1300*2500*400mm working area.

2. 300mm rotary axis for cylinder wood stone carving.

3. 5.5 kw Changsheng water cooling spindle.

4. 5.5 kw Taiwan Delta Inverter.

5. DSP A18 control system support 4 axis working.

6. 1 kw Japan YASKAWA drive and motor.

 Application

1.Wood furniture industry:Wave plate,fine pattern,antique furniture,wooden door,screen,craft sash,composite gates,cupboard doors,interior doors,sofa legs,headboards and so on.

2.Advertising industry:Advertising indentification,sign making,acrylic engraving and cutting,crystal word making,blaster molding,and other advertising materials derivatives making.

3.Die industry:A sculpture of copper,aluminum,iron and other metal molds,as well as artificial marble,sand,plastic sheeting,PVC pipe,wooden planjs and other non-metallic mold.



4.Relief sculpture and 3D engraving



5.Stone,Cylindrical object

Technical Parameters:

NO.

Description

Parameter

1

X,Y,Z Working Area

1300x2500x400mm

2

X,Y,Z Traveling Positioning Accuracy

±0.03/300mm

3

X,Y,Z Repositioning Accuracy

±0.03mm

4

Table Surface

T-slot Table

5

Frame

Welded Structure

6

X, Y Structure

#20 HINWIN linear guide,helical rack

7

Z Structure

Hiwin Rail Linear guide and Ball Screw

8

Max. Power Consumption

(Without Spindle)  2.5kw~3Kw

9

Max. Rapid Travel Rate

33000mm/min

10

Max. Working Speed

25000mm/min

11

Spindle Power

5.5 KW

12

Spindle Speed

0-24000RPM

13

Drive Motors

YASKAWA

14

Working Voltage

AC380V/50/60Hz,3PH (Option: 220V)

15

Command Language

G Code

16

Operating System

DSP A18 4 axis control system

17

Computer Interface

USB

18

Flash Memory

128M(U Disk)

19

Collet

ER25

20

X,Y Resolution

<0.01mm

21

Software Compatibility

Type3/UcancameV9 Software, (Option: Artcam Software)

22

Running Environment  Temperature

0 - 45 Centigrade

23

Relative Humidity

30% - 75%


Contact:  Jack Zhang

Email: manager@elephant-cnc.com

Mobile/whatsapp: 0086-15064026772

Web: www.elephant-cnc.com

                blueelephant.en.alibaba.com

                               blueelephant-cnc.en.made-in-china.com


  • Place of Origin:  China
  • Brand Name:  BLUE ELEPHANT
  • Model Number:  ELE 1324

Technical Parameters:

NO.

Description

Parameter

1

X,Y,Z Working Area

1300x2500x400mm

2

X,Y,Z Traveling Positioning Accuracy

±0.03/300mm

3

X,Y,Z Repositioning Accuracy

±0.03mm

4

Table Surface

T-slot Table

5

Frame

Welded Structure

6

X, Y Structure

#20 HINWIN linear guide,helical rack

7

Z Structure

Hiwin Rail Linear guide and Ball Screw

8

Max. Power Consumption

(Without Spindle)  2.5kw~3Kw

9

Max. Rapid Travel Rate

33000mm/min

10

Max. Working Speed

25000mm/min

11

Spindle Power

5.5 KW

12

Spindle Speed

0-24000RPM

13

Drive Motors

YASKAWA

14

Working Voltage

AC380V/50/60Hz,3PH (Option: 220V)

15

Command Language

G Code

16

Operating System

DSP A18 4 axis control system

17

Computer Interface

USB

18

Flash Memory

128M(U Disk)

19

Collet

ER25

20

X,Y Resolution

<0.01mm

21

Software Compatibility

Type3/UcancameV9 Software, (Option: Artcam Software)

22

Running Environment  Temperature

0 - 45 Centigrade

23

Relative Humidity

30% - 75%
