- Place of Origin: China
- Brand Name: BLUE ELEPHANT
- Model Number: ELE 1224
- Weight: 2000.000 kg

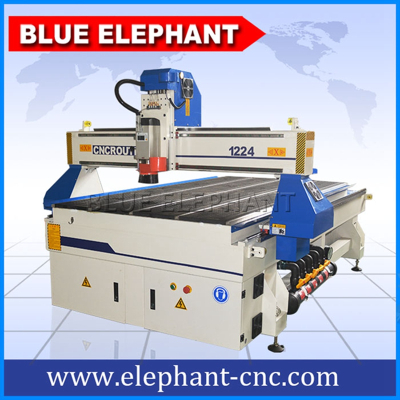

ELE 1224 wood furniture cnc router machines , wood carving machine for furniture design
Product Description
Features:
1200x2400x200 working area
4.5 kw HQD air cooling spindle,18000rpm
5.5 kw Fuling inverter
DSP A11 control system
FL118 stepper motor and YAKO 2608 driver
Imported Taiwan HIWIN 20# Square Linear Guide
Z axis Original Taiwan TBI ball screw Transmission
T-slot&vacuum table
Manual Oil Lubrication system
Japan Ormon Limit Switch
France Schneider safety switch
Integrated control box
Voltage 380V 3phase 50HZ (option:220v)
1.5kw new type double bag dust collector
Plywood case Package
Type3/Artcam software
Technical Parameters:
Number | Description | Parameter |
1 | X,Y,Z Working Area | 1200x2400x200mm |
3 | X,Y,Z Traveling Positioning Accuracy | ±0.03/300mm |
4 | X,Y,Z Repositioning Accuracy | ±0.03mm |
5 | Table Surface | T-slot & vacuum Table |
6 | Spindle | 4.5kw HqD air cooling spindle |
7 | X, Y Structure | 20#Taiwan HIWIN Linear guide and helical rack |
8 | Z Structure | Ball screw and#20 Taiwan HIWIN Linear guide |
9 | Stepper Motor | FL118 |
10 | Max. Rapid Travel Rate | 45000mm/min |
11 | Max. Working Speed | 30000mm/min |
12 | Stepper driver | YAKO 2608 |
13 | Spindle Speed | 0-18000RPM |
14 | Lubrication system | Manual |
15 | Inverter | 5.5kw Fuling Inverter |
16 | Command Language | G Code |
17 | Control System | DSP A11 |
18 | Computer Interface | USB |
19 | Flash Memory | 512M(U Disk) |
20 | Collet | ER25 |
21 | X,Y Resolution | <0.01mm |
22 | Software Compatibility | Type3 Software, (Option: Artcam Software) |
23 | Running Environment Temperature | 0 - 45 Centigrade |
24 | Relative Humidity | 30% - 75% |
Application
Furniture:ideally suitable for mass processing cabinet door,wooden door,solid wood furniture,panel wood furniture,windows,tables and chairs,etc.
Well suited for processing panel.insulating materials,plastic,expoxy resin.carbon mixed compound,etc.
Packaging and shipping:
1.Outside Package:Standard export wooden case .
2.Inner package:strech film .
For shipping,you can choose the sea shipping,air shipping or the transmission of expressage:DHL/TNT/Fedex.
For terms of payment,you can choose the EXW/FOB/CIF/DDP/DDU.It depends on what you would like better.
