- Place of Origin: China
- Brand Name: BLUE ELEPHANT
- Model Number: ELE 1530

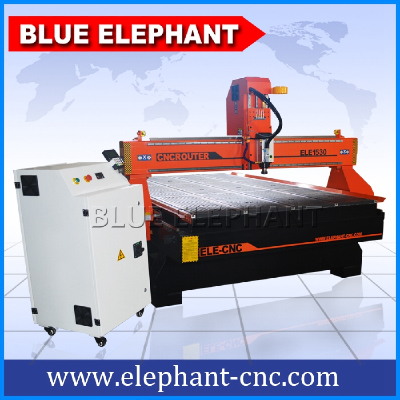

China 1530 wood cnc router , 1530 cnc engraver router for wood door manufacturer
Features:
1500x3000x200 working area
4.5Kw Italy HSD air cooling spindle ,18000rpm
5.5 KW Taiwan DELTA inverter
DSP A11 control system
750w Japan Panasonic servo motor and driver
Imported Taiwan HIWIN #20 Square Linear Guide
Z axis Original Taiwan TBI ball screw Transmission
Vacuum and T-slot table
Separated control cabinet with two sides open,with Schneider rotary handle
Manual or auto Oil Lubrication system
Japan Ormon Limit Switch
1.5kw new type dust colleator
Voltage 380v, 3phase ,50HZ(220V for optional)
Plywood case Package
Type3/Artcam software
Technical Parameters:
Description | Parameter |
X,Y,Z Working Area | 1500x3000x200mm |
Table Surface | Vacuum & T-slot Table |
Frame | Welded structure steel tube frame |
X, Y Structure | #20 Taiwan HIWIN Linear guide and helical rack |
Z Structure | Taiwan TBI Ball screw and#20 Taiwan HIWIN Linear guide |
Spindle Power | 4.5KW Italy HSD air cooling spindle |
Spindle Speed | 0-18000RPM |
Drive Motors | 750w Japan Panasonic servo motor and driver |
Inverter | 5.5 kw Taiwan Delta Inverter |
Command Language | G Code |
Control System | DSP A11 |
Computer Interface | USB |
Collet | ER32 |
X,Y Resolution | <0.01mm |
Software Compatibility | Type3 Software, (Option: Artcam Software) |
Running Environment Temperature | 0 - 45 Centigrade |
Relative Humidity | 30% - 75% |
Application
Furniture:ideally suitable for processing cabinet door,wooden door,solid wood furniture,panel wood furniture,windows,tables and chairs,etc.Also can processing aluminum,pvc,acrylic,pcb,mdf,stone,etc.
Well suited for processing panel.insulating materials,plastic,expoxy resin.carbon mixed compound,etc.
Packaging and shipping:
1.Outside Package:Standard export wooden case .
2.Inner package:strech film .
For shipping,you can choose the sea shipping,air shipping or the transmission of expressage:DHL/TNT/Fedex.
For terms of payment,you can choose the EXW/FOB/CIF/DDP/DDU.It depends on what you would like better.
Contact: Jack Zhang
Email: manager@elephant-cnc.com
Mobile/whatsapp: 0086-15064026772
Web: www.elephant-cnc.com
blueelephant.en.alibaba.com
blueelephant-cnc.en.made-in-china.com
