- Place of Origin: China
- Brand Name: BLUE ELEPHANT
- Model Number: ELE 1325
- Weight: 1600.000 kg

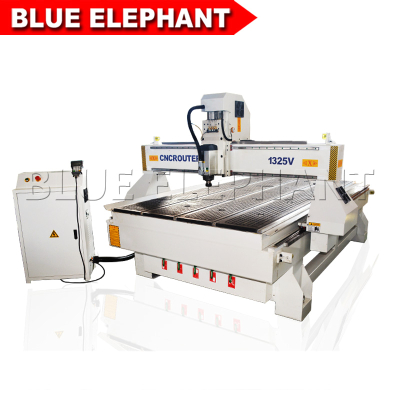

Cheap 3 axis 1325 wood carving cnc router for wood door manufacturer
Features
The cnc router machine is specially designed for woodworking industrial, with multiple spindles auto-changing.
Can be choosen a spindle rotated 90 degree for lock slot . All components used are top quality in the world.
3kw HSD and 4.5kw HSD spindles can be changed automatically with the commands from control system.
Thicken and bigger steel pipe structure after special treatment, well welded, no distortion for whole structure, high precision and long using life.
Specification
NO. | Description | Parameter |
1 | X,Y,Z Working Area | 1300x2500x160mm |
2 | X,Y,Z Traveling Positioning Accuracy | ±0.03/300mm |
3 | X,Y,Z Repositioning Accuracy | ±0.03mm |
4 | Table Surface | T-slot Table |
5 | Frame | Welded Structure |
6 | X, Y Structure | Rack and Pinion Drive, Hiwin Rail Linear Bearings |
7 | Z Structure | Hiwin Rail Linear Bearings and Ball Screw |
8 | Max. Power Consumption | (Without Spindle) 2. kw~2.2Kw |
9 | Max. Rapid Travel Rate | 33000mm/min |
10 | Max. Working Speed | 25000mm/min |
11 | Spindle Power | 3KW HSD air cooling spindle for both heads |
12 | Spindle Speed | 0-18000RPM |
13 | Drive Motors | Stepper System |
14 | Working Voltage | AC220V/50/60Hz,3PH (Option: 380V) |
15 | Command Language | G Code |
16 | Operating System | DSP control system(options: NCstudio/Mach3 PC Software) |
17 | Collet | ER20 |
18 | X,Y Resolution | <0.01mm |
19 | Software Compatibility | Type3/UcancameV9 Software |
20 | Running Environment Temperature | 0 - 45 Centigrade |
Application
Strong functions, easy operation, durable, reliable performance, high efficiency, applicable to batch
process any wooden products, antique furniture, crafts gifts, relief processing.
1. WoodFurniture Industry: Wave Plate, fine pattern, antique furniture, wooden door, screen,MDF,
craft sash, composite gates, cupboard doors, interior doors, sofa legs, headboards and so on.
2.Advertising industry: advertising identification, sigh making, Acrylic engraving and cutting,
crystal word making, blaster molding, and other advertising materials derivatives making.
3.The machine is specially designed for woodworking industrial, with multiple spindles auto-changing.
Contact: Jack Zhang
Email: manager@elephant-cnc.com
Mobile/whatsapp: 0086-15064026772
Web: www.elephant-cnc.com
blueelephant.en.alibaba.com
blueelephant-cnc.en.made-in-china.com
- Place of Origin: China
- Brand Name: BLUE ELEPHANT
- Model Number: ELE 1325
- Weight: 1600.000 kg
Specification
NO. | Description | Parameter |
1 | X,Y,Z Working Area | 1300x2500x160mm |
2 | X,Y,Z Traveling Positioning Accuracy | ±0.03/300mm |
3 | X,Y,Z Repositioning Accuracy | ±0.03mm |
4 | Table Surface | T-slot Table |
5 | Frame | Welded Structure |
6 | X, Y Structure | Rack and Pinion Drive, Hiwin Rail Linear Bearings |
7 | Z Structure | Hiwin Rail Linear Bearings and Ball Screw |
8 | Max. Power Consumption | (Without Spindle) 2. kw~2.2Kw |
9 | Max. Rapid Travel Rate | 33000mm/min |
10 | Max. Working Speed | 25000mm/min |
11 | Spindle Power | 3KW HSD air cooling spindle for both heads |
12 | Spindle Speed | 0-18000RPM |
13 | Drive Motors | Stepper System |
14 | Working Voltage | AC220V/50/60Hz,3PH (Option: 380V) |
15 | Command Language | G Code |
16 | Operating System | DSP control system(options: NCstudio/Mach3 PC Software) |
17 | Collet | ER20 |
18 | X,Y Resolution | <0.01mm |
19 | Software Compatibility | Type3/UcancameV9 Software |
20 | Running Environment Temperature | 0 - 45 Centigrade |
