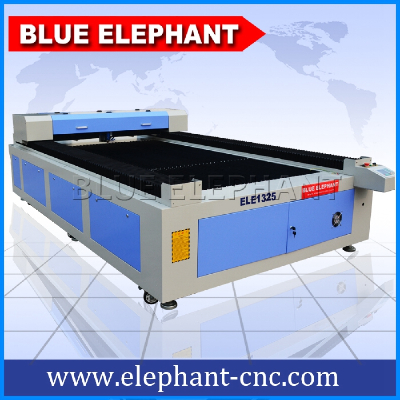

Auto focus laser head cnc laser cutter , co2 metal laser cutting machine with assistance gas
Product Description
Instructions of laser cutting machine:
1300*2500mm table size.
RECI laser tube W6 model.
Ruida laser controller with colored screen.
Auto focus laser head for metal sheets cutting with assistance gas.
CW5200 water chiller.
Adjust table hight. 1/3.
Extra rotary device for cylindrical cups:100mm rotary diameter.
Features of co2 laser engraver:
Mixed-cut: metal steel such as stainless steel,carbon steel,and nonmetal such as acrylic,wood,etc.
High precision: X/Y axis adopt Leadshine servo motor with high precision belt transmission,improve the response speed and cutting precision,extend service life.
Good stability: optimized the nc system control,it can meet the precision parts processing,stable dynamic performance,also can work for long hours.
The cutting section with good quality: mechanical follow-up cutting head system,cutting head always follows the material to keep the cutting point locaation unchanged,which insures smooth cutting section without processing again.It can adopt to flat or curved surface sheet cutting.
Adopt sealed co2 laser tube,main consumable items are electric energy,water cooling,auxiliary gas and laser light.
Simple structure,easy operation,stable laser device and low maintenance cost.
Specification
Items | Parameter |
Model | ELE 1325 laser metal cutting machine |
Working area | 1300 * 2500mm |
Whole machine size | 3400 * 1830 * 1100mm |
Laser-type | Sealed CO2 laser tube |
Laser power | 130-160w |
Cooling mode | Water-cooling and protection system |
Cutting Speed | 60,000mm/min |
Resetting position accuracy | ±0.05mm |
Exhausting method | Exhausted by funnel |
Graphic format supported | AI BMP DST DWG DXF DXP LAS PLT |
Controlling software | Ruida laser controller with colored screen |
Compatible software | CorelDraw,AutoCAD,Photoship |
Draving system | Stepper |
Working voltage | AC220V 1ph 50Hz |
Operating temperature | 0-45℃ |
Operating humidity | 5-95% |
Application
Applicable Industry:
Advertising industry(stainless steel and acrylic),sheet metal industry(carbon steel),package industry(die board),and so on.
Applicable Materials:
Acrylic,stainless steel,carbon steel,MDF,die board,etc.
Applicaion Show:
Metal spectacle frame,furniture plate cutting,MDF photo frame cutting,building model cutting,etc.
Packaging & Shipping
Package: Standard polywood case for 1325 laser metal cutting machine.
Shipping: within 7 working days after receiving your payment.
you can choose air transport, ocean shipment, DHL etc.
FAQ
Question 1: I want to buy this machine,what suggestion can you give?
Answer: Please tell me:what material do you process? What's the size of your material?(Better show me your product picture)
Question 2: What's the delivery cost & time?
Answer: Please tell me your sea port name,i check shipping cost. After production,we'll deliver ASAP.
Question 3: Have you exported to our country?
Answer: We have been in this field for 11 years,we have CE,CO,ISO,FDA certificates,have exported to Europe,South America,Arab,Asia,Russia,Spain,Australia and many more countries.
Question 4: This is the first time I use this kind of machine, is it easy to operate?
There are english manual or guide video that show how to use machine.
If there is still have any question, please contact us by e-mail / skype/ phone /trademanager online service at any time.
Question 5: If machine have any problem after I receive it, how can I do ?
Free parts send to you in machine warranty period if machine have any problem.
If the parts less than 0.5KG, we pay the postage.
If it exceeds 0.5KG, you need to pay the postage.
