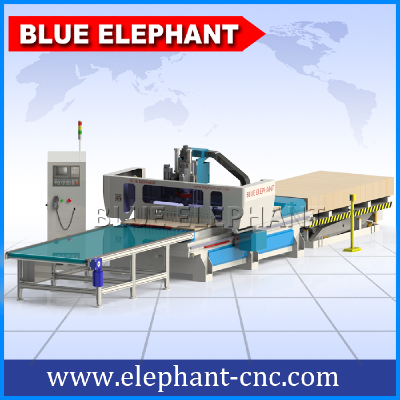

Auto feeding 5d wooden door production line cnc router , cnc machine forwood furniture , cabinets making

Auto feeding 5d wooden door production line cnc router , cnc machine forwood furniture , cabinets making

  • Min.Order Quantity: 1 Set
  • Supply Ability: 200 Sets per Month
  • Port: Qingdao
  • Payment Terms: L/C,D/A,D/P,T/T,Western Union
Get Latest Price:
  • *Quantity: Set/Sets
| Factory
Experience:2013-04-03
Buyer Protection

- Guaranteed Secure Payments on Every Order

- Refund if your item is not delivered or as described

- Buyer Protection after order confirmation

Latest Browsing
Product Details
  • Place of Origin:  China
  • Brand Name:  BLUE ELEPHANT
  • Model Number:  ELE 1325

Auto feeding 5d wooden door production line cnc router , cnc machine for wood furniture , cabinets making





Product Description

Advantages:



1.Good effect of processsing:High precision , cutting material very smoothly , Automatic design , automatic classification, without human intervention.

2.Improve work efficiency:Auto feeding materials, automatic layout optimization , improve material utilization.

3.Save working time:Automatic feeding , save the time of labor , no human intervention , minimizing error rate to minimum , ensure the quality of the order.

Parameters:



Description Parameter
Travelling size2500x1260x200mm
Working size2440x1240x50mm
Table size2440x1250mm
Table SurfaceVacuum absorption Table
Load & unload speed15m/min
X, Y StructureHelical Rack gear, Taiwan Hiwin/PMI Rail Linear Bearings
Z StructureTaiwan TBI Ball Screw Taiwan Hiwin/PMI Rail Linear Bearings
Spindle power9.0kw Italy HSD ATC air cooling spindle
Spindle speed 0-24000rpm/min
Travelling speed45m/min
Working speed20m/min
Tool magazineArmless
Drive MotorsJapan YASKAWA
Working VoltageAC380V/50/60Hz,3PH
Control SystemTaiwan SYNTEC control system
Software CompatibilityType3 Software, (Option: Artcam Software)
Running Environment  Temperature0 - 45 Centigrade

Applications:

·Furniture:ideally suitable for processing cabinet door,wooden door,solid wood furniture,panel furniture,office furniture,windows,tables and chairs,etc.

·Well-suited for processing panel,insulating materials,plastic,epoxy resin,carbon mixed compound,etc.

Contact:  Jack Zhang

Email: manager@elephant-cnc.com

Mobile/whatsapp: 0086-15064026772

Web: www.elephant-cnc.com

                blueelephant.en.alibaba.com

                               blueelephant-cnc.en.made-in-china.com


  • Place of Origin:  China
  • Brand Name:  BLUE ELEPHANT
  • Model Number:  ELE 1325

Parameters:



Description Parameter
Travelling size2500x1260x200mm
Working size2440x1240x50mm
Table size2440x1250mm
Table SurfaceVacuum absorption Table
Load & unload speed15m/min
X, Y StructureHelical Rack gear, Taiwan Hiwin/PMI Rail Linear Bearings
Z StructureTaiwan TBI Ball Screw Taiwan Hiwin/PMI Rail Linear Bearings
Spindle power9.0kw Italy HSD ATC air cooling spindle
Spindle speed 0-24000rpm/min
Travelling speed45m/min
Working speed20m/min
Tool magazineArmless
Drive MotorsJapan YASKAWA
Working VoltageAC380V/50/60Hz,3PH
Control SystemTaiwan SYNTEC control system
Software CompatibilityType3 Software, (Option: Artcam Software)
Running Environment  Temperature0 - 45 Centigrade
