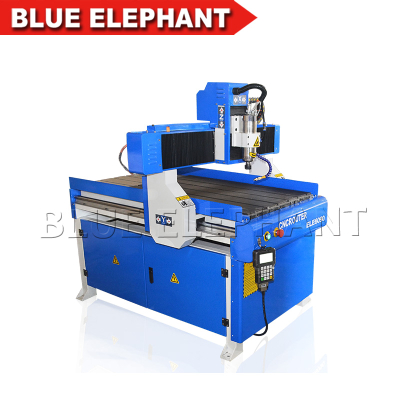

6090 cnc router 6040 cnc router small cnc router machine world advanced configuration

6090 cnc router 6040 cnc router small cnc router machine world advanced configuration

  • Min.Order Quantity: 1 Set
  • Supply Ability: 200 Sets per Month
  • Port: Qingdao
  • Payment Terms: L/C,D/A,D/P,T/T,Western Union
Get Latest Price:
  • *Quantity: Set/Sets
| Factory
Experience:2013-04-03
Buyer Protection

- Guaranteed Secure Payments on Every Order

- Refund if your item is not delivered or as described

- Buyer Protection after order confirmation

Latest Browsing
Product Details
  • Place of Origin:  China
  • Brand Name:  BLUE ELEPHANT
  • Model Number:  ELE 6090

6090 cnc router 6040 cnc router small cnc router machine world advanced configuration

Features of 6090 wood router:   6090 cnc router :

  • 600*900*300mm(the height of z axis can be customized)

  • DSP controller A11

  • 2.2kw water cooling spindle

  • 2.2kw fuling inverter

  • 750w Japan Panasonic servo motor and driver

  • Taiwan HIWIN linear guide

  • Taiwan TBI ball screw

  • T-slot work table with PVC protection

  • water mist cooling sprary,cooling tools when the machine working

  • software:artcam/Type

  • working voltage:220v 1ph 50hz(110v for optional)

  • plywood case package 6090

Specification

Parameters of cnc wood carving machine:



Description

Parameter

X,Y,Z Working Area

600mmx900mmx300mm

cnc router machine size(L*W*H)

1400*1100*1500mm

Package size(L*W*H)

1600*1300*1700mm

X,Y,Z Traveling Positioning Accuracy

±0.01mm/300mm

Control System

DSP A11

Table Surface

PVC & T-slot Table

X, Y,Z Structure

Z axis TBI Ball Screw ,#20 HINWIN linear guide

X,Y axis #20 HINWIN linear guide ,Helical rack gear

Max. Rapid Travel Rate

10000mm/min

Max. Working Speed

6000mm/min

Spindle Power

2.2 KW Changsheng water Cooling Spindle

Spindle Speed

24000RPM

Drive Motors

Japan Panasonic servo motor and drive

Inverter

2.2kw Fuling Inverter

Working Voltage

AC220V/1PH/50HZ(110V for optional)

Operating System

ARTCAM/Type3

X,Y Resolution

<0.01mm

Running Environment  Temperature

0 - 45 Centigrade

Relative Humidity

30% - 75%

PS:All the working area and specifications can be customized according to your requests.



Application of 3 axis cnc wood router:



1) It is good at engraving on brass, aluminum, plastic, acrylic, wood, MDF and other similar materials , with fast speed and high accuracy, and it can meet the demand of all the needs of engraving.

2)Especially for Advertising industry:Advertising identification, sigh making, Acrylic engraving and cutting,  Blaster molding, Crafts relief processing, PVC words,Light words,Plastic words,Artwork,Aluminum,PCB,Various types of landmark model.



Our Services

1, Within 7 days since your local customs clearance: if the cnc router’s any parts has any problems, we will change it free.
2, Exceed 7 days since your local customs clearance but within warranty period: if the cnc router parts have any problems, we can change the old machine parts to new ones free, but you should pay all the shipping cost.

3, Exceed warranty period: if the cnc router parts have any problems, we can offer new machine parts with cost price and you also should pay all the shipping cost.
4, We offer 24 hours technical support by call, and email.
5, Our technician can give you remote guide online(Skype or MSN) if you have any question.
6, We can record videos of operating the laser machine.
7, Free training course in our factory.
8.Machine will be adjusted before it is delivered , operation disk/CD was included.

Contact:  Jack Zhang

Email: manager@elephant-cnc.com

Mobile/whatsapp: 0086-15064026772

Web: www.elephant-cnc.com

blueelephant.en.alibaba.com

blueelephant-cnc.en.made-in-china.com


  • Place of Origin:  China
  • Brand Name:  BLUE ELEPHANT
  • Model Number:  ELE 6090

Parameters of cnc wood carving machine:



Description

Parameter

X,Y,Z Working Area

600mmx900mmx300mm

cnc router machine size(L*W*H)

1400*1100*1500mm

Package size(L*W*H)

1600*1300*1700mm

X,Y,Z Traveling Positioning Accuracy

±0.01mm/300mm

Control System

DSP A11

Table Surface

PVC & T-slot Table

X, Y,Z Structure

Z axis TBI Ball Screw ,#20 HINWIN linear guide

X,Y axis #20 HINWIN linear guide ,Helical rack gear

Max. Rapid Travel Rate

10000mm/min

Max. Working Speed

6000mm/min

Spindle Power

2.2 KW Changsheng water Cooling Spindle

Spindle Speed

24000RPM

Drive Motors

Japan Panasonic servo motor and driver

Inverter

2.2kw Fuling Inverter

Working Voltage

AC220V/1PH/50HZ(110V for optional)

Operating System

ARTCAM/Type3

X,Y Resolution

<0.01mm

Running Environment  Temperature

0 - 45 Centigrade

Relative Humidity

30% - 75%

PS:All the working area and specifications can be customized according to your requests.
