- Place of Origin: China
- Brand Name: BLUE ELEPHANT
- Model Number: ELE 2030

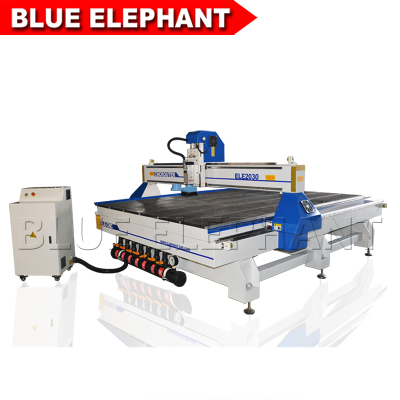

3kw Italian spindle cnc router machine price 2030 big size
Product Description
Features:
2000x3000x200 working area
3 kw Italy HSD air cooling spindle,18000rpm
3.7 kw Taiwan Delta inverter
DSP control system
FL118 stepper motor and YAKO 2811 big driver
Imported Taiwan HIWIN 20# Square Linear Guide
Z axis Original Taiwan TBI ball screw Transmission
T-slot table
Manual Oil Lubrication system
Japan Ormon Limit Switch
France Schneider safety switch
Integrated control box
Voltage 380V 3phase 50HZ (option:220v)
Plywood case Package
Type3/Artcam software
Technical Parameters:
Description | Parameter |
X,Y,Z Working Area | 2000x3000x200mm |
Spindle | 3kw HSD air cooling spindle |
Inverter | 3.7kw Fuling Inverter |
Motor driver | Stepper |
Spindle Speed | 0-18000RPM |
Control System | DSP |
Table Surface | T-slot&vacuum Table |
X, Y Structure | 20#Taiwan HIWIN Linear guide and helical rack |
Z Structure | Ball screw and#20 Taiwan HIWIN Linear guide |
Max. Rapid Travel Rate | 45000mm/min |
Max. Working Speed | 30000mm/min |
X,Y,Z Traveling Positioning Accuracy | ±0.03/300mm |
X,Y,Z Repositioning Accuracy | ±0.03mm |
Lubrication system | Manual |
Command Language | G Code |
Computer Interface | USB |
Flash Memory | 512M(U Disk) |
Collet | ER20 |
X,Y Resolution | <0.01mm |
Software Compatibility | Type3 Software, (Option: Artcam Software) |
Running Environment Temperature | 0 - 45 Centigrade |
Relative Humidity | 30% - 75% |
Packaging and shipping:
1.Outside Package:Standard export wooden case .
2.Inner package:strech film .
For shipping,you can choose the sea shipping,air shipping or the transmission of expressage:DHL/TNT/Fedex.
For terms of payment,you can choose the EXW/FOB/CIF/DDP/DDU. It depends on what you would like better.
Contact: Jack Zhang
Email: manager@elephant-cnc.com
Mobile/whatsapp: 0086-15064026772
Web: www.elephant-cnc.com
blueelephant.en.alibaba.com
blueelephant-cnc.en.made-in-china.com
