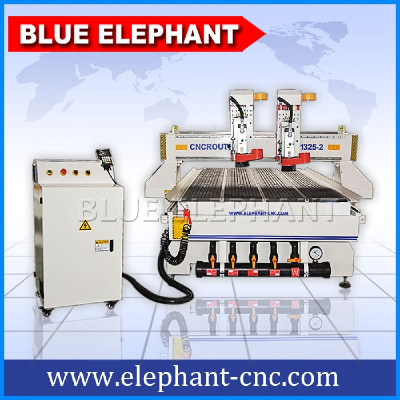

3D double heads 4*8ft wood cnc router , cnc 1325 wood cutting machine for aluminum , pvc , acrylic

3D double heads 4*8ft wood cnc router , cnc 1325 wood cutting machine for aluminum , pvc , acrylic

  • Min.Order Quantity: 1 Set
  • Supply Ability: 200 Sets per Month
  • Port: Qingdao
  • Payment Terms: L/C,D/A,D/P,T/T,Western Union
Get Latest Price:
  • *Quantity: Set/Sets
| Factory
Experience:2013-04-03
Buyer Protection

- Guaranteed Secure Payments on Every Order

- Refund if your item is not delivered or as described

- Buyer Protection after order confirmation

Latest Browsing
Product Details
  • Place of Origin:  China
  • Brand Name:  BLUE ELEPHANT
  • Model Number:  ELE 1325

3D double heads 4*8ft wood cnc router ,  cnc 1325 wood cutting machine for aluminum , pvc , acrylic



Product Description

Features:

• 1300*2500mm*200mm effective working area

• Double separate heads with 2 pieces 3kw Italy HSD spindle

• Vacuum & T-slot working table

• 5.5kw Taiwan DELTA inverter

• Z axis with Taiwan TBI Ball screw transmission

• X,Y axis with high precision helical rack gear transmission

• X,Y,Z axis with Taiwan #25 HIWIN Linear Guide

• DSP control system ,Original type

• Stepper motor and driver

• Double motors for Y axis

• Tool calibration sensor

• Auto Oil lubrication system

• Switch: Japanese OMRON Switch

• Cable: Highly flexible towline; fire-resistant double-sheathed cable.

• Artcam /Type 3 software

• Voltage: 380V, 3 phase, 50/60HZ (220v,1phase or 3phase for your option)



Technical Parameters:



Number

Description

Parameter

1

X,Y,Z Working Area

1300x2500x200mm

3

X,Y,Z Traveling Positioning Accuracy

±0.03/300mm

4

X,Y,Z Repositioning Accuracy

±0.03mm

5

Table Surface

T-slot&Vacuum working Table

6

Frame structure

Cast iron

7

X, Y Structure

25#Taiwan HIWIN Linear guide and helical rack

8

Z Structure

Ball screw and#25 Taiwan HIWIN Linear guide

9

Stepper Motor and driver

Stepper

10

Max. Rapid Travel Rate

45000mm/min

11

Max. Working Speed

30000mm/min

12

Optional parts

Dust collector ,vacuum pump

13

Spindle Speed

0-18000RPM

14

Spindle power

3kw HSD air cooling spindle*2pcs

15

Inverter

5.5kw Delta

16

Command Language

G Code

17

Control System

DSP

18

Computer Interface

USB

19

Flash Memory

512M(U Disk)

20

Collet

ER20

21

X,Y Resolution

<0.01mm

22

Software Compatibility

Type3 Software, (Option: Artcam Software)

23

Running Environment  Temperature

0 - 45 Centigrade

24

Relative Humidity

30% - 75%

Application

Furniture:ideally suitable for mass processing cabinet door,wooden door,solid wood furniture,panel wood furniture,windows,tables and chairs,etc.



Well suited for processing panel.insulating materials,plastic,expoxy resin.carbon mixed compound,etc.

Packaging and shipping:

1.Outside Package:Standard export wooden case .

2.Inner package:strech film .

For shipping,you can choose the sea shipping,air shipping or the transmission of expressage:DHL/TNT/Fedex.



For terms of payment,you can choose the EXW/FOB/CIF/DDP/DDU.It depends on what you would like better.

Our Services

1, Within 7 days since your local customs clearance: if the cnc router’s any parts has any problems, we will change it free.
2, Exceed 7 days since your local customs clearance but within warranty period: if the cnc router parts have any problems, we can change the old machine parts to new ones free, but you should pay all the shipping cost.

3, Exceed warranty period: if the cnc router parts have any problems, we can offer new machine parts with cost price and you also should pay all the shipping cost.
4, We offer 24 hours technical support by call, and email.
5, Our technician can give you remote guide online(Skype or MSN) if you have any question.
6, We can record videos of operating the laser machine.
7, Free training course in our factory.
8.Machine will be adjusted before it is delivered , operation disk/CD was included.
