- Place of Origin: China
- Brand Name: BLUE ELEPHANT
- Model Number: ELE 2055

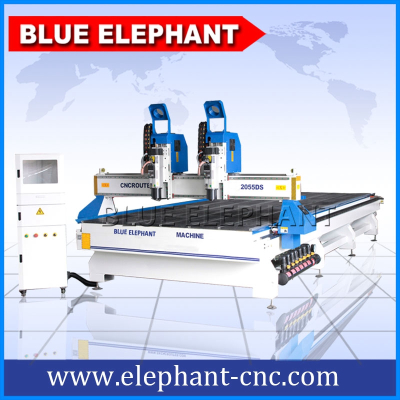

2055 multi-heads woodwork cnc router , cnc wood carve machine for wood door design
Product Description
Features:
• 2000*5500mm*200mm effective working area
• Double separate heads with 2 pieces of 9 KW China Changsheng or HQD ATC spindle,ISO30
• Vacuum & T-slot working table
• 11kw Taiwan DELTA inverter
• Z axis with Taiwan TBI Ball screw transmission
• X,Y axis with high precision helical rack gear transmission
• X,Y,Z axis with Taiwan #25 HIWIN Linear Guide
• Ncstuido 53C model ,Original type
• 1kw Japan YASKAWA servo driver and motor, total 6 sets ; double sets with servo motor brake for Z axis
• Double motors for Y axis
• Tool calibration sensor
• Auto Oil lubrication system
• Switch: Japanese OMRON Switch
• Cable: Highly flexible towline; fire-resistant double-sheathed cable.
• Artcam /Type 3 software
• Voltage: 380V, 3 phase, 50/60HZ (220v,1phase or 3phase for your option)
• 2 sets of 3kw double packet dust collector
Technical Parameters:
Number | Description | Parameter |
1 | X,Y,Z Working Area | 2000x5500x200mm |
3 | X,Y,Z Traveling Positioning Accuracy | ±0.03/300mm |
4 | X,Y,Z Repositioning Accuracy | ±0.03mm |
5 | Table Surface | T-slot&Vacuum working Table |
6 | Frame structure | Cast iron |
7 | X, Y Structure | 25#Taiwan HIWIN Linear guide and helical rack |
8 | Z Structure | Ball screw and#25 Taiwan HIWIN Linear guide |
9 | Stepper Motor and driver | 1KW Japan YASKAWA |
10 | Max. Rapid Travel Rate | 45000mm/min |
11 | Max. Working Speed | 30000mm/min |
12 | Optional parts | Dust collector ,vacuum pump |
13 | Spindle Speed | 0-18000RPM |
14 | Spindle power | 9kw Changsheng or HQD air cooling spindle |
15 | Inverter | 11kw E-type Taiwan Delta Inverter |
16 | Command Language | G Code |
17 | Control System | NCstudio 53C |
18 | Computer Interface | USB |
19 | Flash Memory | 512M(U Disk) |
20 | Collet | ER32 |
21 | X,Y Resolution | <0.01mm |
22 | Software Compatibility | Type3 Software, (Option: Artcam Software) |
23 | Running Environment Temperature | 0 - 45 Centigrade |
24 | Relative Humidity | 30% - 75% |
Application
Furniture:ideally suitable for mass processing cabinet door,wooden door,solid wood furniture,panel wood furniture,windows,tables and chairs,etc.
Well suited for processing panel.insulating materials,plastic,expoxy resin.carbon mixed compound,etc.
Packaging and shipping:
1.Outside Package:Standard export wooden case .
2.Inner package:strech film .
For shipping,you can choose the sea shipping,air shipping or the transmission of expressage:DHL/TNT/Fedex.
For terms of payment,you can choose the EXW/FOB/CIF/DDP/DDU.It depends on what you would like better.
