- Place of Origin: China
- Brand Name: BLUE ELEPHANT
- Model Number: ELE 2040
- Weight: 2500.000 kg

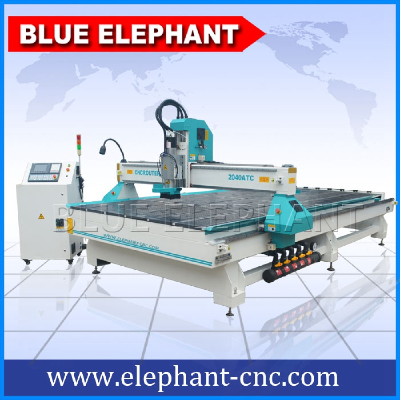

2040 linear ATC cnc wood carving machine , China wood cnc machine for sale
Features:
1. 7.5kw HQD Water cooling ATC spindle, 24000rpm
2. Taiwan SYNTEC 6MB control system,
3. Japan Panasonic servo motor and driver, more stable and stonger.
4. 8*position, also can choose 6pcs, 10pcs, 12pcs etc.
5. XY axis transmission is Taiwan HIWIN linear guide with Helical rack, high performance.
6. Zaxis transmission is Taiwan TBI Ball Screw with Taiwan HIWIN linear guide, high precision.
7.Welded steel structure
8.Tool sensor calibration
9.Automatic Oil lubrication system
10.Switch: Japanese OMRON Switch
Parameters:
Model | ELE 2040ATC |
X,Y,Z Working Area | 2000*4000*200mm effective working area |
X,Y,Z Traveling Positioning Accuracy | ±0.03/300mm |
X,Y,Z Repositioning Accuracy | ±0.03mm |
Table Surface | Vacuum and T-slot Combined (Option: T-slot Table) |
Frame | Thicken steel Square Tube Heavy structure , 8mm thicken steel , gantry with T type |
X, Y Structure | Gear and rack transmission, Taiwan HIWIN Linear Rail |
Z Structure | Taiwan TBI Ball Screw, Taiwan HIWIN Linear Rail |
Max. Power Consumption | (Without Spindle) 4.5KW |
Max. Rapid Travel Rate | 60000mm/min |
Max. Working Speed | 25000mm/min |
Spindle Power | 7.5kw HQD Water cooling ATC spindle |
Spindle Speed | 0-24000RPM |
Drive Motors | Japan PANASONIC servo motor and driver |
Inverter | Taiwan DELTA 11kw |
Command Language | G Code |
Operating System | Taiwan SYNTEC 6MB control system |
Computer Interface | USB interface |
Collet | ISO30 |
Working Voltage | AC380V/50/60Hz,3PH (Option: 220V) |
Software Compatibility | Type 3 /Artcam /Ucancam |
Application & samples :
1. WoodFurniture Industry: Wave Plate, fine pattern, antique furniture, wooden door, screen,
craft sash, composite gates, cupboard doors, interior doors, sofa legs, headboards and so on.
2.Advertising industry: advertising identification, sigh making, Acrylic engraving and cutting,
crystal word making, blaster molding, and other advertising materials derivatives making.
3.die industry: A sculpture of copper, aluminum, iron and other metal molds, as well as
artificial marble, sand, plastic sheeting, PVC pipe, wooden planks and other non-metallic mold.
4.relief sculpture and 3D engraving
Our Services
1, Within 7 days since your local customs clearance: if the cnc router’s any parts has any problems, we will change it free.
2, Exceed 7 days since your local customs clearance but within warranty period: if the cnc router parts have any problems, we can change the old machine parts to new ones free, but you should pay all the shipping cost.
3, Exceed warranty period: if the cnc router parts have any problems, we can offer new machine parts with cost price and you also should pay all the shipping cost.
4, We offer 24 hours technical support by call, and email.
5, Our technician can give you remote guide online(Skype or MSN) if you have any question.
6, We can record videos of operating the laser machine.
7, Free training course in our factory.
8.Machine will be adjusted before it is delivered , operation disk/CD was included.
FAQ
1, What payment you accept?
1,T/T inadvance 2.western union 3 .by ESCROW . 4 by paypal .
2,I did not imported before , how should I do ?
You only need pay to us , we will arrange all the things to you and teach you how to do.We will prepare all the documents to you,
you don't need worry , because we know what you need .
3, Do you Arrange the ship For us?
yes ,for FOB or CIF price, we will arrange shipment for you.
4,How about the documents after shipment?
We‘ ll send all original documents to you by DHL, for example :the Packing List, Commercial Invoice, B/L,
and other certificates as required by clients.
5, How about the packing?
It's packaged by plywood case.
Contact: Jack Zhang
Email: manager@elephant-cnc.com
Mobile/whatsapp: 0086-15064026772
Web: www.elephant-cnc.com
blueelephant.en.alibaba.com
blueelephant-cnc.en.made-in-china.com
