- Place of Origin: China
- Brand Name: BLUE ELEPHANT
- Model Number: ELE 2040
- Weight: 1500.000 kg

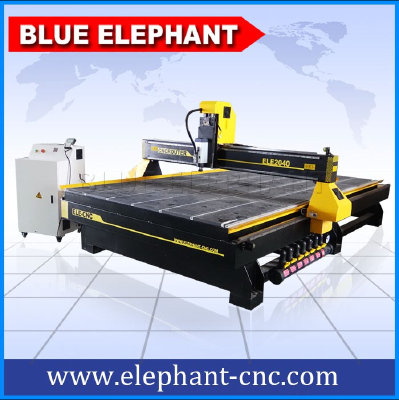

2040 3d woodworking cnc router cnc machines for wood
Features:
1.Spindle:6 kw Germany Italy HSD air cooling spindle
2.Working area:2000*4000*200mm
3.Transmission: German O. Henry rack
4.Vacuum pump: 7.5 KW Vortex pump
5.Inverter:7.5 kw Taiwan Delta Inverter
6.Drive motor:Japan YASKAWA
7.Working table:Vacuum & T-slot working table
8.Tool calibration sensor
9.Oil lubrication system
10.Switch: Japanese OMRON Switch
Technical Parameters:
Description | Parameter |
X,Y,Z Working Area | 2000x4000x200mm |
Spindle | 6kw HSD air cooling spindle |
Inverter | 7.5kw Delta Inverter |
Motor driver | Japan YASKAWA |
Spindle Speed | 0-18000RPM |
Control System | DSP |
Table Surface | vacuum&T-slot Table |
X, Y Structure | German O. Henry rack,#20Taiwan HIWIN Linear guide |
Z Structure | Ball screw and#20 Taiwan HIWIN Linear guide |
Max. Rapid Travel Rate | 45000mm/min |
Max. Working Speed | 30000mm/min |
X,Y,Z Traveling Positioning Accuracy | ±0.03/300mm |
X,Y,Z Repositioning Accuracy | ±0.03mm |
Lubrication system | Manual |
Command Language | G Code |
Computer Interface | USB |
Flash Memory | 512M(U Disk) |
Collet | ER32 |
X,Y Resolution | <0.01mm |
Software Compatibility | Type3 Software, (Option: Artcam Software) |
Running Environment Temperature | 0 - 45 Centigrade |
Relative Humidity | 30% - 75% |
Application
Furniture:ideally suitable for processing cabinet door,wooden door,solid wood furniture,panel wood furniture,windows,tables and chairs,etc.
Well suited for processing panel.insulating materials,plastic,expoxy resin.carbon mixed compound,etc.
Packaging and shipping:
1.Outside Package:Standard export wooden case .
2.Inner package:strech film .
For shipping,you can choose the sea shipping,air shipping or the transmission of expressage:DHL/TNT/Fedex.
For terms of payment,you can choose the EXW/FOB/CIF/DDP/DDU.It depends on what you would like better.
Our Services
1, Within 7 days since your local customs clearance: if the cnc router’s any parts has any problems, we will change it free.
2, Exceed 7 days since your local customs clearance but within warranty period: if the cnc router parts have any problems, we can change the old machine parts to new ones free, but you should pay all the shipping cost.
3, Exceed warranty period: if the cnc router parts have any problems, we can offer new machine parts with cost price and you also should pay all the shipping cost.
4, We offer 24 hours technical support by call, and email.
5, Our technician can give you remote guide online(Skype or MSN) if you have any question.
6, We can record videos of operating the laser machine.
7, Free training course in our factory.
8.Machine will be adjusted before it is delivered , operation disk/CD was included.
Contact: Jack Zhang
Email: manager@elephant-cnc.com
Mobile/whatsapp: 0086-15064026772
Web: www.elephant-cnc.com
blueelephant.en.alibaba.com
blueelephant-cnc.en.made-in-china.com
