2030 hot sale ATC wood cnc router price 5.5kw water cooling spindle

2030 hot sale ATC wood cnc router price 5.5kw water cooling spindle

  • Min.Order Quantity: 1 Set
  • Supply Ability: 200 Sets per Month
  • Port: Qingdao
  • Payment Terms: L/C,D/A,D/P,T/T,Western Union
Get Latest Price:
  • *Quantity: Set/Sets
| Factory
Experience:2013-04-03
Buyer Protection

- Guaranteed Secure Payments on Every Order

- Refund if your item is not delivered or as described

- Buyer Protection after order confirmation

Latest Browsing
Product Details
  • Place of Origin:  China
  • Brand Name:  BLUE ELEPHANT
  • Model Number:  ELE 2030
  • Weight: 2000.000 kg

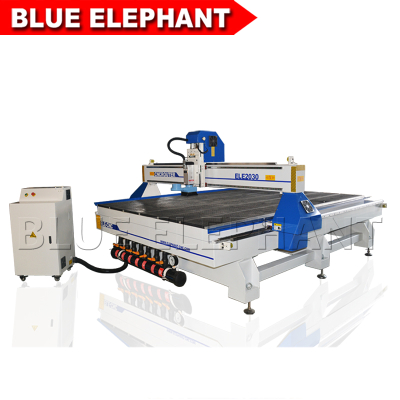

2030 Hot Sale ATC Wood CNC Router Price 5.5kw Water Cooling Spindle



Product Description

  • Working area: 2000mm*3000mm *200mm

  • Steel gantry , strong structure

  • T-slot & vacuum working table

  • 5.5KW Changsheng ATC water cooling spindle

  • 5.5kw Fuling inverter

  • Z axis with Taiwan TBI Ball screw transmission

  • X,Y axis with high precision helical rack gear transmission

  • X,Y,Z axis with Taiwan TBI/PMI/HIWIN Linear Guide

  • Original Ncstudio 63A controller

  • Stepping motor & Driver

  • Double motors for Y axis

  • Oil lubrication system

  • Artcam /Type 3 software

  • Voltage:380V, 3phase, 50/60HZ

Techinical Parameters

Description

Parameter

X,Y,Z Working Area

2000x3000x200mm

Spindle

5.5kw Changsheng atc water cooling spindle

Inverter

5.5kw Fuling Inverter

Motor driver

Stepper

Spindle Speed

0-24000RPM

Control System

DSP

Table Surface

T-slot Table

X, Y Structure

20#Taiwan HIWIN Linear guide and helical rack

Z Structure

Ball screw and#20 Taiwan HIWIN Linear guide

Max. Rapid Travel Rate

45000mm/min

Max. Working Speed

30000mm/min

X,Y,Z Traveling Positioning Accuracy

±0.03/300mm

X,Y,Z Repositioning Accuracy

±0.03mm

Lubrication system

Manual

Command Language

G Code

Computer Interface

USB

Flash Memory

512M(U Disk)

Collet

ER20

X,Y Resolution

<0.01mm

Software Compatibility

Type3 Software, (Option: Artcam Software)

Running Environment  Temperature

0 - 45 Centigrade

Relative Humidity

30% - 75%


Application



1. Wood Furniture Industry: Wave Plate, fine pattern, antique furniture, wooden door, screen,

craft sash, composite gates, cupboard doors, interior doors, sofa legs, headboards and so on.



2.Advertising industry: advertising identification, sigh making, Acrylic engraving and cutting,

crystal word making, blaster molding, and other advertising materials derivatives making.



3.Die industry: A sculpture of copper, aluminum, iron and other metal molds, as well as

artificial marble, sand, plastic sheeting, PVC pipe, wooden planks and other non-metallic mold.

Packaging and shipping:

1.Outside Package:Standard export wooden case .

2.Inner package:strech film .

For shipping,you can choose the sea shipping,air shipping or the transmission of expressage:DHL/TNT/Fedex.

For terms of payment,you can choose the EXW/FOB/CIF/DDP/DDU.It depends on what you would like better.

Our Services

1, Within 7 days since your local customs clearance: if the cnc router’s any parts has any problems, we will change it free.
2, Exceed 7 days since your local customs clearance but within warranty period: if the cnc router parts have any problems, we can change the old machine parts to new ones free, but you should pay all the shipping cost.

3, Exceed warranty period: if the cnc router parts have any problems, we can offer new machine parts with cost price and you also should pay all the shipping cost.
4, We offer 24 hours technical support by call, and email.
5, Our technician can give you remote guide online(Skype or MSN) if you have any question.
6, We can record videos of operating the laser machine.
7, Free training course in our factory.
8.Machine will be adjusted before it is delivered , operation disk/CD was included.
