- Place of Origin: China
- Brand Name: BLUE ELEPHANT
- Model Number: ELE 1830

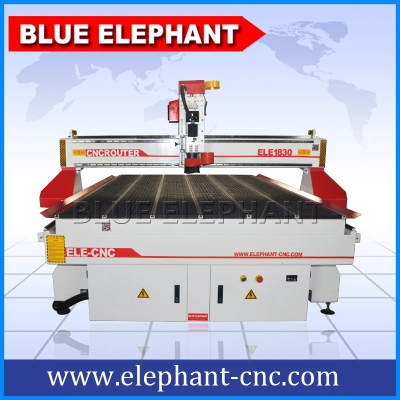

1830 3 axis cnc router , wood furniture cnc router machines with woodworking tools
Product Description
Advantages:
---1800*3000 large working area.
---Taiwan #20 HIWIN linear guide, import from Taiwan, top brand in the world, with long life.
---Adopt Italy HSD air cooling spindle, top brand in the world.
---DSP control system support Breakpoint memory,easy operation
Features:
Effective working area:1800*3000*200mm
DSP A11 control system
Italy HSD 7kw air cooling spindle(with 24000rpm)
Taiwan Delta 7.5kw inverter
Vacuum & T-slot working table(with 42 vacuum holes)
Taiwan TBI ball screw
Taiwan HIWIN (or PMI ) Square linear guide
Japan 850w YASKAWA servo system(1kw driver 850w motor)
Heavy duty thicker and bigger welded steel tube frame
Technical Parameters:
Descriptions | Parameters |
Modle | 1830 |
Working area | 1800*3000*200mm |
Control system | DSP A11 Control System |
Spindle | 7kw Italy HSD air cooling spindle |
Spindle speed | 0-24000RPM |
Motor | 850w YASKAWA servo motor |
Driver | 1kw YASKAWA driver |
Inverter | 7.5kw E type Taiwan DELTA Inverter |
Table surface | T-slot and vacuum working table |
Frame | Heavy duty thicker and bigger welded steel tube frame |
X,Y axis transmission | Helical rack and pinion drive for X,Y axis |
Z axis transmission | Taiwan TBI ball screw for z axis |
Linear rail | Taiwan HIWIN 20# linear guide |
Dust Collector | 3kw dust collection with 2 pockets |
vacuum pump | 7.5kw Tongyou oil vacuum pump |
Options | Oil Lubrication System Japan OMRON limit switch for X,Y,Z axis Soft limit switch Tool sensor calibration Shanghai Cardiff cable The air gun |
Applications:
1.Wood furnitur industry: Wave plate, fine pattern, antique furniture, wooden door, screen, craft sash, composite gates, cupboard doors, interior doors, sofa legs, headboards and so on.
2.Advertising industry: Advertising indentification, sign making, acrylic engraving and cutting, crystal word making, blaster molding, and other advertising materials derivatives making.
3.Die industry: A sculpture of copper, aluminum, iron and other metal molds, as well as artificial marble, sand , plastic sheeting, PVC pipe, wooden planjs and other non-metallic mold.
Packaging and shipping:
1.Outside Package:Standard export wooden case .
2.Inner package:strech film .
For shipping,you can choose the sea shipping,air shipping or the transmission of expressage:DHL/TNT/Fedex.
For terms of payment,you can choose the EXW/FOB/CIF/DDP/DDU.It depends on what you would like better.
Contact: Jack Zhang
Email: manager@elephant-cnc.com
Mobile/whatsapp: 0086-15064026772
Web: www.elephant-cnc.com
blueelephant.en.alibaba.com
blueelephant-cnc.en.made-in-china.com
