- Place of Origin: China

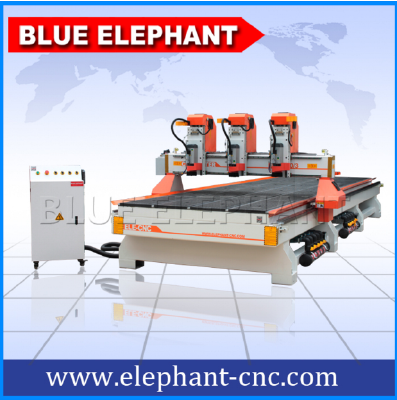

- Brand Name: BLUE ELEPHANT
- Model Number: 1660
Number | Description | Parameter |
1 | X,Y,Z Working Area | 600x1600x200mm |
3 | X,Y,Z Traveling Positioning Accuracy | ±0.03/300mm |
4 | X,Y,Z Repositioning Accuracy | ±0.03mm |
5 | Table Surface | Vacuum & T-slot Table |
6 | Frame structure | Cast iron |
7 | X, Y Structure | 20#Taiwan HIWIN Linear guide and helical rack |
8 | Z Structure | Ball screw and#20 Taiwan HIWIN Linear guide |
9 | Vacuum pump | 7.5KW Vortex vacuum pump |
10 | Max. Rapid Travel Rate | 45000mm/min |
11 | Max. Working Speed | 30000mm/min |
12 | Spindle Power | 4.5KW Italy HSD air cooling spindle |
13 | Spindle Speed | 0-18000RPM |
14 | Drive Motors | Japan Panasonic |
15 | Inverter | 7 kw Taiwan Delta Inverter |
16 | Command Language | G Code |
17 | Control System | DSP |
18 | Computer Interface | USB |
19 | Flash Memory | 512M(U Disk) |
20 | Collet | ER30 |
21 | X,Y Resolution | <0.01mm |
22 | Software Compatibility | Type3 Software, (Option: Artcam Software) |
23 | Running Environment Temperature | 0 - 45 Centigrade |
24 | Relative Humidity | 30% - 75% |
- Place of Origin: China
- Brand Name: BLUE ELEPHANT
- Model Number: 1660
Number
Description
Parameter
1
X,Y,Z Working Area
600x1600x200mm
3
X,Y,Z Traveling Positioning Accuracy
±0.03/300mm
4
X,Y,Z Repositioning Accuracy
±0.03mm
5
Table Surface
Vacuum & T-slot Table
6
Frame structure
Cast iron
7
X, Y Structure
20#Taiwan HIWIN Linear guide and helical rack
8
Z Structure
Ball screw and#20 Taiwan HIWIN Linear guide
9
Vacuum pump
7.5KW Vortex vacuum pump
10
Max. Rapid Travel Rate
45000mm/min
11
Max. Working Speed
30000mm/min
12
Spindle Power
4.5KW Italy HSD air cooling spindle
13
Spindle Speed
0-18000RPM
14
Drive Motors
Japan Panasonic
15
Inverter
7 kw Taiwan Delta Inverter
16
Command Language
G Code
17
Control System
DSP
18
Computer Interface
USB
19
Flash Memory
512M(U Disk)
20
Collet
ER30
21
X,Y Resolution
<0.01mm
22
Software Compatibility
Type3 Software, (Option: Artcam Software)
23
Running Environment Temperature
0 - 45 Centigrade
24
Relative Humidity
30% - 75%
