- Place of Origin: China
- Brand Name: BLUE ELEPHANT
- Model Number: ELE 1530
- Weight: 1500.000 kg

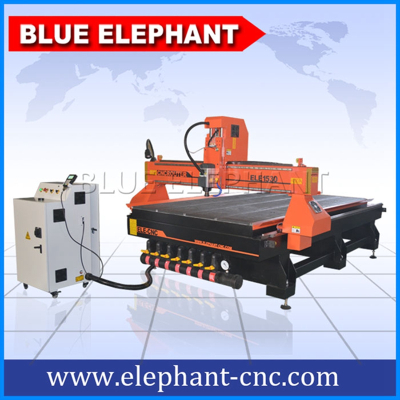

1530 cnc wood cutting machine , cnc router for MDF , acrylic , aluminum
Features:
1500x3000x200 working area
4.5Kw Italy HSD air cooling spindle ,24000rpm
5.5 KW Taiwan DELTA inverter
DSP control system
YASKAWA 850w servo motor and 1KW servo driver
Imported Taiwan HIWIN 25# Square Linear Guide
Z axis Original Taiwan TBI ball screw Transmission
Automatic oil mist cooling sprayer system
5.5KW Air type vacuum pump
Vacuum and T-slot table
Separated control cabinet with two sides open
Manual Oil Lubrication system
Japan Ormon Limit Switch,
France Schneider safety switch
21 different size cutter free
Import milling cutter for aluminum 3mm 10pcs ,6mm 10pcs
Voltage 220V 3phase 60HZ
Plywood case Package
Type3/Artcam software
Technical Parameters:
Number | Description | Parameter |
1 | X,Y,Z Working Area | 1500x3000x200mm |
3 | X,Y,Z Traveling Positioning Accuracy | ±0.03/300mm |
4 | X,Y,Z Repositioning Accuracy | ±0.03mm |
5 | Table Surface | Vacuum & T-slot Table |
6 | Frame | Welded structure steel tube frame |
7 | X, Y Structure | 20#Taiwan HIWIN Linear guide and helical rack |
8 | Z Structure | Ball screw and#20 Taiwan HIWIN Linear guide |
9 | Vacuum pump | 5.5KW Air type vacuum pump |
10 | Max. Rapid Travel Rate | 45000mm/min |
11 | Max. Working Speed | 30000mm/min |
12 | Spindle Power | 4.5KW Italy HSD air cooling spindle |
13 | Spindle Speed | 0-18000RPM |
14 | Drive Motors | Japan YASKAWA servo motor and driver |
15 | Inverter | 5.5 kw Taiwan Delta Inverter |
16 | Command Language | G Code |
17 | Control System | DSP |
18 | Computer Interface | USB |
19 | Flash Memory | 512M(U Disk) |
20 | Collet | ER30 |
21 | X,Y Resolution | <0.01mm |
22 | Software Compatibility | Type3 Software, (Option: Artcam Software) |
23 | Running Environment Temperature | 0 - 45 Centigrade |
24 | Relative Humidity | 30% - 75% |
Application
Furniture:ideally suitable for processing cabinet door,wooden door,solid wood furniture,panel wood furniture,windows,tables and chairs,etc.
Well suited for processing panel.insulating materials,plastic,expoxy resin.carbon mixed compound,etc.
Packaging and shipping:
1.Outside Package:Standard export wooden case .
2.Inner package:strech film .
For shipping,you can choose the sea shipping,air shipping or the transmission of expressage:DHL/TNT/Fedex.
For terms of payment,you can choose the EXW/FOB/CIF/DDP/DDU.It depends on what you would like better.
Our Services
1, Within 7 days since your local customs clearance: if the cnc router’s any parts has any problems, we will change it free.
2, Exceed 7 days since your local customs clearance but within warranty period: if the cnc router parts have any problems, we can change the old machine parts to new ones free, but you should pay all the shipping cost.
3, Exceed warranty period: if the cnc router parts have any problems, we can offer new machine parts with cost price and you also should pay all the shipping cost.
4, We offer 24 hours technical support by call, and email.
5, Our technician can give you remote guide online(Skype or MSN) if you have any question.
6, We can record videos of operating the laser machine.
7, Free training course in our factory.
8.Machine will be adjusted before it is delivered , operation disk/CD was included.
Contact: Jack Zhang
Email: manager@elephant-cnc.com
Mobile/whatsapp: 0086-15064026772
Web: www.elephant-cnc.com
blueelephant.en.alibaba.com
blueelephant-cnc.en.made-in-china.com
