- Place of Origin: China
- Brand Name: BLUE ELEPHANT
- Model Number: ELE 1530

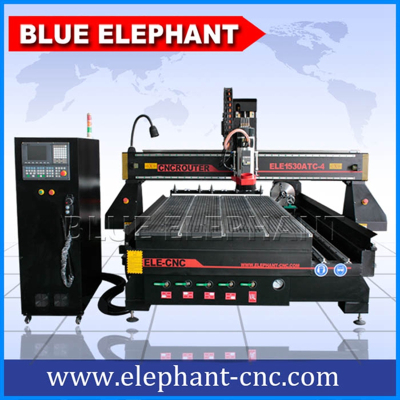

1500*3000mm furniture making machine , 4 axis atc cnc router with rotary
Features:
1).9 kw HSD ATC air cooling spindle from Italy
2).11kw DELTA inverter from Taiwan
3).Original Taiwan SYNTEC control system
4).850w Japan YASKAWA servo motor
5).5.5kw Tongyou vacuum pump
6).Vacuum and T-slot working table
7).3 kw double bag dust collector.
8).300mm diameter,2500mm length rotary axis.
Parameters:
Number | Description | Parameter |
1 | X,Y,Z Working Area | 1500x3000x200mm |
2 | Table Size | 1500×3000mm |
3 | X,Y,Z Traveling Positioning Accuracy | ±0.03/300mm |
4 | X,Y,Z Repositioning Accuracy | ±0.03mm |
5 | Table Surface | Vacuum and T-slot working table |
6 | Frame | Welded Structure |
7 | X, Y Structure | Rack and Pinion Drive, Hiwin Rail Linear Bearings |
8 | Z Structure | Hiwin Rail Linear Bearings and TBI Ball Screw |
9 | Max. Power Consumption | (Without Spindle) 3.2Kw |
10 | Max. Rapid Travel Rate | 33000mm/min |
11 | Max. Working Speed | 25000mm/min |
12 | Spindle Power | 9kw Italy HSD ATC air cooling spindle |
13 | Spindle Speed | 0-24000RPM |
14 | Drive Motors | 850W Japan YASKAWA servo motor |
15 | Working Voltage | 380v, 3 phase, 50/60HZ (Option: AC220V/50/60Hz,3PH) |
16 | Command Language | G Code |
17 | Operating System | Taiwan SYNTEC control System |
18 | Computer Interface | USB |
19 | Rotary device | 300mm diameter*2500mm length |
20 | Collet | IOS30 |
21 | X,Y Resolution | <0.01mm |
22 | Software Compatibility | Type3/UcancameV9 Software, (Option: Artcam Software) |
23 | Running Environment Temperature | 0 - 45 Centigrade |
24 | Relative Humidity | 30% - 75% |
Applicantion:
1. WoodFurniture Industry: Wave Plate, fine pattern, antique furniture, wooden door, screen, craft sash,composite gates, cupboard doors, interior doors, sofa legs, headboards and so on.
2.Advertising industry: advertising identification, sigh making, Acrylic engraving and cutting,crystal word making, blaster molding, and other advertising materials derivatives making.
3.Die industry: A sculpture of copper, aluminum, iron and other metal molds, as well as artificial marble, sand, plastic sheeting,PVC pipe, wooden planks and other non-metallic mold.
4.relief sculpture and 3D engraving
5.Cylindrical object
Contact: Jack Zhang
Email: manager@elephant-cnc.com
Mobile/whatsapp: 0086-15064026772
Web: www.elephant-cnc.com
blueelephant.en.alibaba.com
blueelephant-cnc.en.made-in-china.com
