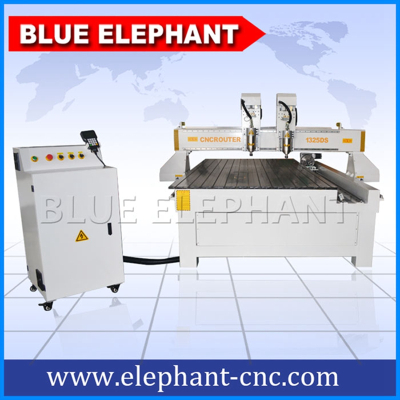

1325 multi-heads cnc router , cnc wood working machinery with 2 separate heads

1325 multi-heads cnc router , cnc wood working machinery with 2 separate heads

  • Min.Order Quantity: 1 Set
  • Supply Ability: 200 Sets per Month
  • Port: Qingdao
  • Payment Terms: L/C,D/A,D/P,T/T,Western Union
Get Latest Price:
  • *Quantity: Set/Sets
| Factory
Experience:2013-04-03
Buyer Protection

- Guaranteed Secure Payments on Every Order

- Refund if your item is not delivered or as described

- Buyer Protection after order confirmation

Latest Browsing
Product Details
  • Place of Origin:  China
  • Brand Name:  BLUE ELEPHANT
  • Model Number:  ELE 1325
  • Weight: 1500.000 kg

1325 multi-heads cnc router , cnc wood working machinery with 2 separate heads



Product Description

Features:

  • 1300x2500x200 working area

  • Double 3Kw water cooling spindle ,24000rpm

  • 3.7kw Fuling inverter

  • DSP A11 control system

  • FL118 stepper motor and Leadshine 860H driver

  • Imported Taiwan HIWIN 20# Square Linear Guide

  • Z axis Original Taiwan TBI ball screw Transmission

  • 200mm diameter fixed on the Y axis side

  • Manual Oil Lubrication system

  • Japan Ormon Limit Switch,

  • France Schneider safety switch

  • Separate control box

  • Voltage 220V 3phase 60HZ (option:330v)

  • Plywood case Package

  • Type3/Artcam software

Technical Parameters:



Number

Description

Parameter

1

X,Y,Z Working Area

1300x2500x200mm

3

X,Y,Z Traveling Positioning Accuracy

±0.03/300mm

4

X,Y,Z Repositioning Accuracy

±0.03mm

5

Table Surface

T-slot vertical Table

6

Frame structure

Cast iron

7

X, Y Structure

20#Taiwan HIWIN Linear guide and helical rack

8

Z Structure

Ball screw and#20 Taiwan HIWIN Linear guide

9

Stepper Motor

FL118

10

Max. Rapid Travel Rate

45000mm/min

11

Max. Working Speed

30000mm/min

12

Stepper driver

Leadshine 860H

13

Spindle Speed

0-24000RPM

14

Spindle power

Double 3kw water cooling spindle

15

Inverter

3.7kw Fuling Inverter

16

Command Language

G Code

17

Control System

DSP A11

18

Computer Interface

USB

19

Flash Memory

512M(U Disk)

20

Collet

ER20

21

X,Y Resolution

<0.01mm

22

Software Compatibility

Type3 Software, (Option: Artcam Software)

23

Running Environment  Temperature

0 - 45 Centigrade

24

Relative Humidity

30% - 75%

Application

Furniture:ideally suitable for mass processing cabinet door,wooden door,solid wood furniture,panel wood furniture,windows,tables and chairs,etc.



Well suited for processing panel.insulating materials,plastic,expoxy resin.carbon mixed compound,etc.

Packaging and shipping:

1.Outside Package:Standard export wooden case .

2.Inner package:strech film .

For shipping,you can choose the sea shipping,air shipping or the transmission of expressage:DHL/TNT/Fedex.



For terms of payment,you can choose the EXW/FOB/CIF/DDP/DDU.It depends on what you would like better.

Our Services

1, Within 7 days since your local customs clearance: if the cnc router’s any parts has any problems, we will change it free.
2, Exceed 7 days since your local customs clearance but within warranty period: if the cnc router parts have any problems, we can change the old machine parts to new ones free, but you should pay all the shipping cost.

3, Exceed warranty period: if the cnc router parts have any problems, we can offer new machine parts with cost price and you also should pay all the shipping cost.
4, We offer 24 hours technical support by call, and email.
5, Our technician can give you remote guide online(Skype or MSN) if you have any question.
6, We can record videos of operating the laser machine.
7, Free training course in our factory.
8.Machine will be adjusted before it is delivered , operation disk/CD was included.
