- Place of Origin: China
- Brand Name: BLUE ELEPHANT
- Model Number: ELE 1325
- Weight: 1500.000 kg

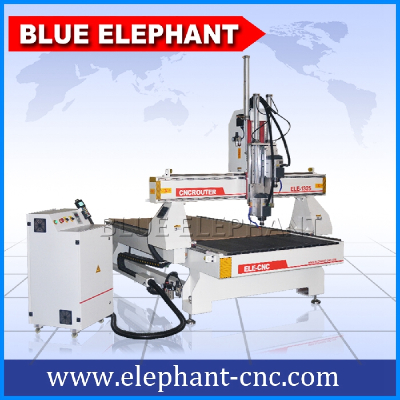

ELE-1325 cnc wood routers, best price cnc router machinery, cnc router with rotary clamp & water mist cooling sprayer system
Parameters:
Number | Description | Parameter |
1 | X,Y,Z Working Area | 1300x2500x200mm |
2 | X,Y,Z Traveling Positioning Accuracy | ±0.03/300mm |
3 | X,Y,Z Repositioning Accuracy | ±0.03mm |
4 | Table Surface | Vacuum and T-slot working table |
5 | Frame Structure | Heavy-duty Thicken Big Steel Tube Structure |
6 | X, Y Structure | Helical Rack and Pinion Drive, Hiwin Rail Linear Bearings |
7 | Z Structure | Hiwin Rail Linear Bearings and Ball Screw |
8 | Max. Power Consumption | (Without Spindle) 3.2Kw |
9 | Max. Rapid Travel Rate | 33000mm/min |
10 | Max. Working Speed | 25000mm/min |
11 | Spindle Power | 2* 3kw Italy HSD air cooling spindle |
12 | Spindle Speed | 18000/24000RPM |
13 | Drive Motors | Stepper System/ Japan YASKAWA Servo |
14 | Working Voltage | AC380V/50/60Hz,3PH (Option: 220V) |
15 | Command Language | G Code |
16 | Operating System | Original NC Studio 53C System control system (Options: NK105,NK300,SYNTEC control system) |
17 | Working Method | Pneumatic System, spindle work one by one |
18 | Inverter | Imported Delta Inverter |
19 | Collet | ER25 |
20 | X,Y Resolution | <0.01mm |
21 | Software Compatibility | Type3/UcancameV9 Software, (Option: Artcam Software) |
22 | Running Environment Temperature | 0 - 45 Centigrade |
23 | Relative Humidity | 30% - 75% |
24 | Optional Parts | Air Cooling Spindle(HQD,Changsheng, HSD) |
Syntec Control System | ||
Dust Collector | ||
Vacuum Pump | ||
Rotary System | ||
Mist-cooling System | ||
850w YASKAWA servo/750w DELTA Servo Motors |
Packing:
1.Outside package:Standard export wooden cases
2.Inner package:Strech film
Shipping:
For the shipping,you can choose the sea shipping,air shipping,and you also can choose the transmission of expressage: DHL/TNT/Fedex and so on.You can choose the EXW/FOB/CIF/DDP/DDU.It depends on what you would like better.
Guarantee:
12 months for the whole machine. Within 12 months under normal use and maintenance,
If something is wrong with the machine, you will get spare part for free.
Out of 12 months, you will get spare parts at cost price.
You will also get technical support and service all the lifetime.
Technical support:
1, Technical support by phone, email or MSN/Skype around the clock
2, Friendly English version manual and operation video CD disk
3, Engineer available to service machinery overseas
After sales services:
Normal machine is properly adjusted before dispatch. You will be able to use the mchines immediately.
You will be able to get free training advice towards our machine in our factory.
You will also get free suggestion and consultation, technical support and service
by email/fax/tel and lifetime technical support
Contact: Jack Zhang
Email: manager@elephant-cnc.com
Mobile/whatsapp: 0086-15064026772
Web: www.elephant-cnc.com
blueelephant.en.alibaba.com
blueelephant-cnc.en.made-in-china.com
