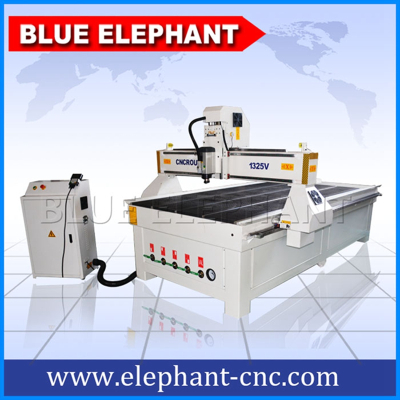

1325 china cnc router machine , homemade cnc router machine with factory price

1325 china cnc router machine , homemade cnc router machine with factory price

  • Min.Order Quantity: 1 Set
  • Supply Ability: 200 Sets per Month
  • Port: Qingdao
  • Payment Terms: L/C,D/A,D/P,T/T,Western Union
Get Latest Price:
  • *Quantity: Set/Sets
| Factory
Experience:2013-04-03
Buyer Protection

- Guaranteed Secure Payments on Every Order

- Refund if your item is not delivered or as described

- Buyer Protection after order confirmation

Latest Browsing
Product Details
  • Place of Origin:  China
  • Brand Name:  BLUE ELEPHANT
  • Model Number:  ELE1325

1325 china cnc router machine , homemade cnc router machine with factory price


Product details

 Features:

  • 1300x2500x200 working area

  • 4.5 kw Italy HSD air cooling spindle,18000rpm

  • 5.5 kw Taiwan Delta inverter

  • DSP A11 control system

  • FL118 stepper motor and Leadshine 860H driver

  • Imported Taiwan HIWIN 20# Square Linear Guide

  • Z axis Original Taiwan TBI ball screw Transmission

  • T-slot&vacuum table

  • Manual Oil Lubrication system

  • Japan Ormon Limit Switch

  • France Schneider safety switch

  • Separate control box

  • Voltage 220V 3phase 60HZ (option:330v)

  • Plywood case Package

  • Type3/Artcam software

Technical Parameters:





Description

Parameter

X,Y,Z Working Area

2000x3000x200mm

Spindle

4.5kw HSD air cooling spindle

Inverter

5.5kw Delta Inverter

Motor driver

Stepper

Spindle Speed

0-18000RPM

Control System

DSP A11

Table Surface

T-slot&vacuum Table

X, Y Structure

20#Taiwan HIWIN Linear guide and helical rack

Z Structure

Ball screw and#20 Taiwan HIWIN Linear guide

Max. Rapid Travel Rate

45000mm/min

Max. Working Speed

30000mm/min

X,Y,Z Traveling Positioning Accuracy

±0.03/300mm

X,Y,Z Repositioning Accuracy

±0.03mm

Lubrication system

Manual

Command Language

G Code

Computer Interface

USB

Flash Memory

512M(U Disk)

Collet

ER32

X,Y Resolution

<0.01mm

Software Compatibility

Type3 Software, (Option: Artcam Software)

Running Environment  Temperature

0 - 45 Centigrade

Relative Humidity

30% - 75%






Application

Furniture:ideally suitable for processing cabinet door,wooden door,solid wood furniture,panel wood furniture,windows,tables and chairs,etc.



Well suited for processing panel.insulating materials,plastic,expoxy resin.carbon mixed compound,etc.



Packaging and shipping:

1.Outside Package:Standard export wooden case .

2.Inner package:strech film .

For shipping,you can choose the sea shipping,air shipping or the transmission of expressage:DHL/TNT/Fedex.



For terms of payment,you can choose the EXW/FOB/CIF/DDP/DDU.It depends on what you would like better.


Our Services

1, Within 7 days since your local customs clearance: if the cnc router’s any parts has any problems, we will change it free.
2, Exceed 7 days since your local customs clearance but within warranty period: if the cnc router parts have any problems, we can change the old machine parts to new ones free, but you should pay all the shipping cost.

3, Exceed warranty period: if the cnc router parts have any problems, we can offer new machine parts with cost price and you also should pay all the shipping cost.
4, We offer 24 hours technical support by call, and email.
5, Our technician can give you remote guide online(Skype or MSN) if you have any question.
6, We can record videos of operating the laser machine.
7, Free training course in our factory.
8.Machine will be adjusted before it is delivered , operation disk/CD was included.

Our Factory




Jinan Blue Elephant CNC Equipment Co., Ltd is located in Jinan City , Shandong Province .
We have always been developing to the research and manufacturer of CNC router machine and plasma cutting machine .
We have our R & D department , Quality control department , and after sale & service department .
Our products are widely used in Woodworking , Advertising , Model , Electric , CAD / CAM Industry model , Clothing , Package Printing , Marking , Laser sealing and so on .
We had got CE and SGS certification , always offer best quality machine .
Welcome to visit our factory!

Please contact us ,

So we can help you select the right system to meet your needs and fit your budget !
