- Place of Origin: China
- Brand Name: BLUE ELEPHANT
- Model Number: ELE 1325

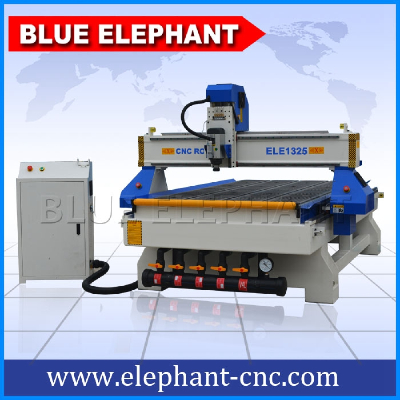

1300x2500mm cnc router , 1325 cnc machine for wood with roller in front
Product Description
Advantages:
---The roller in front, for easy uploading.
---Taiwan #20 HIWIN linear guide, import from Taiwan, top brand in the world, with long life.
---Adopt Italy HSD air cooling spindle, top brand in the world.
Features:
1300x2500x200 working area
4.5 kw Italy HSD air cooling spindle,18000rpm
5.5 kw Taiwan Delta inverter
DSP A11 control system
FL118 stepper motor and YAKO 2811 big driver
Imported Taiwan HIWIN 20# Square Linear Guide
Z axis Original Taiwan TBI ball screw Transmission
T-slot and vacuum working table
Japan Ormon Limit Switch
France Schneider safety switch
Seperated control box
Voltage 380V 3phase 50HZ (option:220v)
Plywood case Package
Type3/Artcam software
Technical Parameters:
Number | Description | Parameter |
1 | X,Y,Z Working Area | 1300x2500x200mm |
3 | X,Y,Z Traveling Positioning Accuracy | ±0.03/300mm |
4 | X,Y,Z Repositioning Accuracy | ±0.03mm |
5 | Table Surface | T-slot Table |
6 | Spindle | 4.5kw HSD air cooling spindle |
7 | X, Y Structure | 20#Taiwan HIWIN Linear guide and helical rack |
8 | Z Structure | Ball screw and#20 Taiwan HIWIN Linear guide |
9 | Stepper Motor | FL118 |
10 | Max. Rapid Travel Rate | 45000mm/min |
11 | Max. Working Speed | 30000mm/min |
12 | Stepper driver | YAKO 2811 Driver |
13 | Spindle Speed | 0-18000RPM |
14 | Lubrication system | Manual or auto |
15 | Inverter | 5.5kw Taiwan Delta Inverter |
16 | Command Language | G Code |
17 | Control System | DSP A11 |
18 | Computer Interface | USB |
19 | Flash Memory | 512M(U Disk) |
20 | Collet | ER25 |
21 | X,Y Resolution | <0.01mm |
22 | Software Compatibility | Type3 Software, (Option: Artcam Software) |
23 | Running Environment Temperature | 0 - 45 Centigrade |
24 | Relative Humidity | 30% - 75% |
Applications:
1.Wood furnitur industry: Wave plate, fine pattern, antique furniture, wooden door, screen, craft sash, composite gates, cupboard doors, interior doors, sofa legs, headboards and so on.
2.Advertising industry: Advertising indentification, sign making, acrylic engraving and cutting, crystal word making, blaster molding, and other advertising materials derivatives making.
3.Die industry: A sculpture of copper, aluminum, iron and other metal molds, as well as artificial marble, sand , plastic sheeting, PVC pipe, wooden planjs and other non-metallic mold.
Packaging and shipping:
1.Outside Package:Standard export wooden case .
2.Inner package:strech film .
For shipping,you can choose the sea shipping,air shipping or the transmission of expressage:DHL/TNT/Fedex.
For terms of payment,you can choose the EXW/FOB/CIF/DDP/DDU.It depends on what you would like better.
Contact: Jack Zhang
Email: manager@elephant-cnc.com
Mobile/whatsapp: 0086-15064026772
Web: www.elephant-cnc.com
blueelephant.en.alibaba.com
blueelephant-cnc.en.made-in-china.com
